QR Code Plugin

Feature Introduction

The QR Code Plugin provides complete QR code manipulation functionality for your application, including the ability to：

• Launch QR code scanner
• Display QR code image with custom content
• Customize QR Code Center Icon
• Setting the QR code position marker color

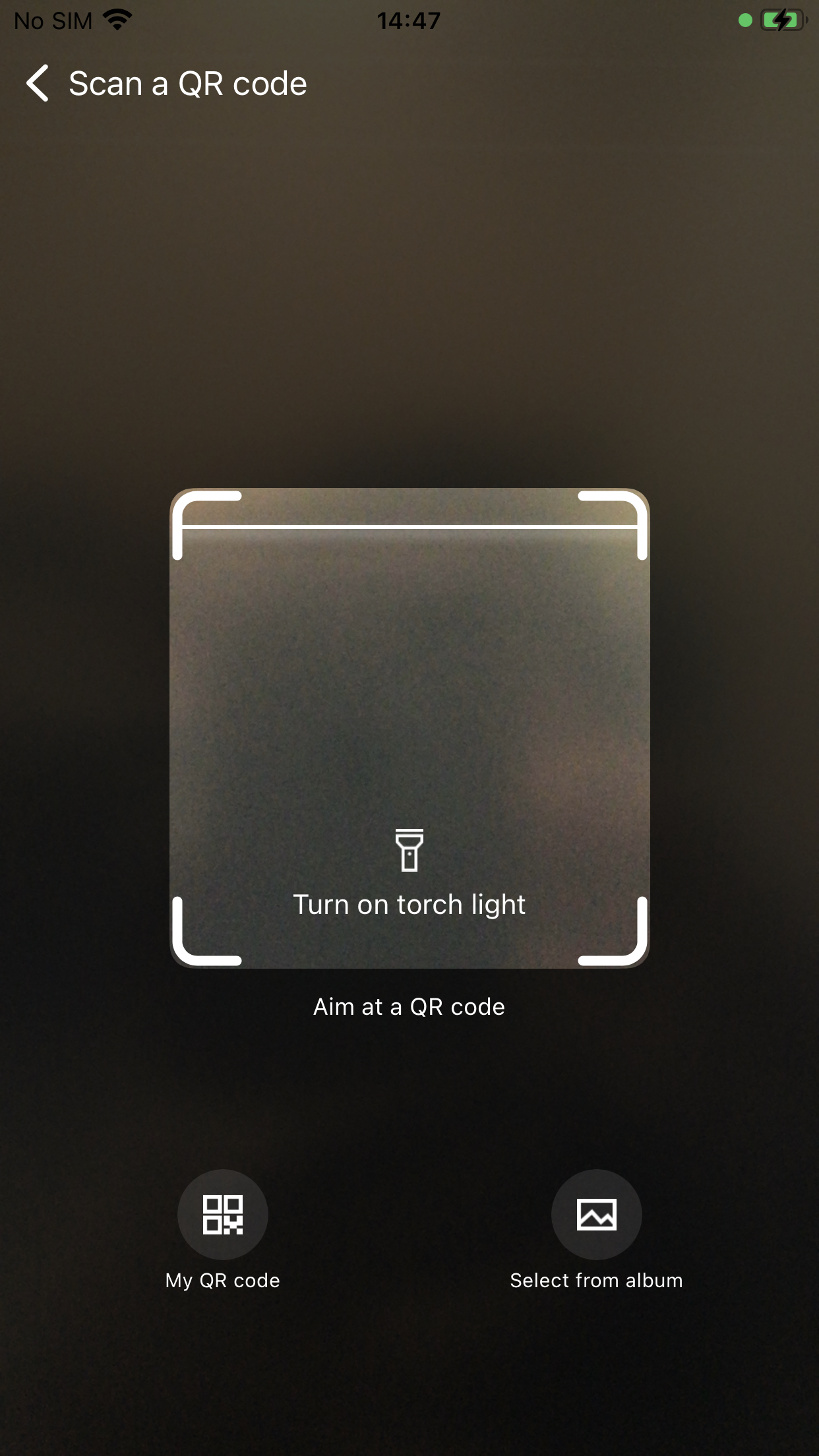

The QR code scanner interface contains three main sections：

• My QR Code：Generate and display a QR code containing personal information.
• Album：Selects a QR code image from the system album for recognition.
• Touch to illuminate：Turn on the device flashlight to assist with scanning in low light conditions.

note

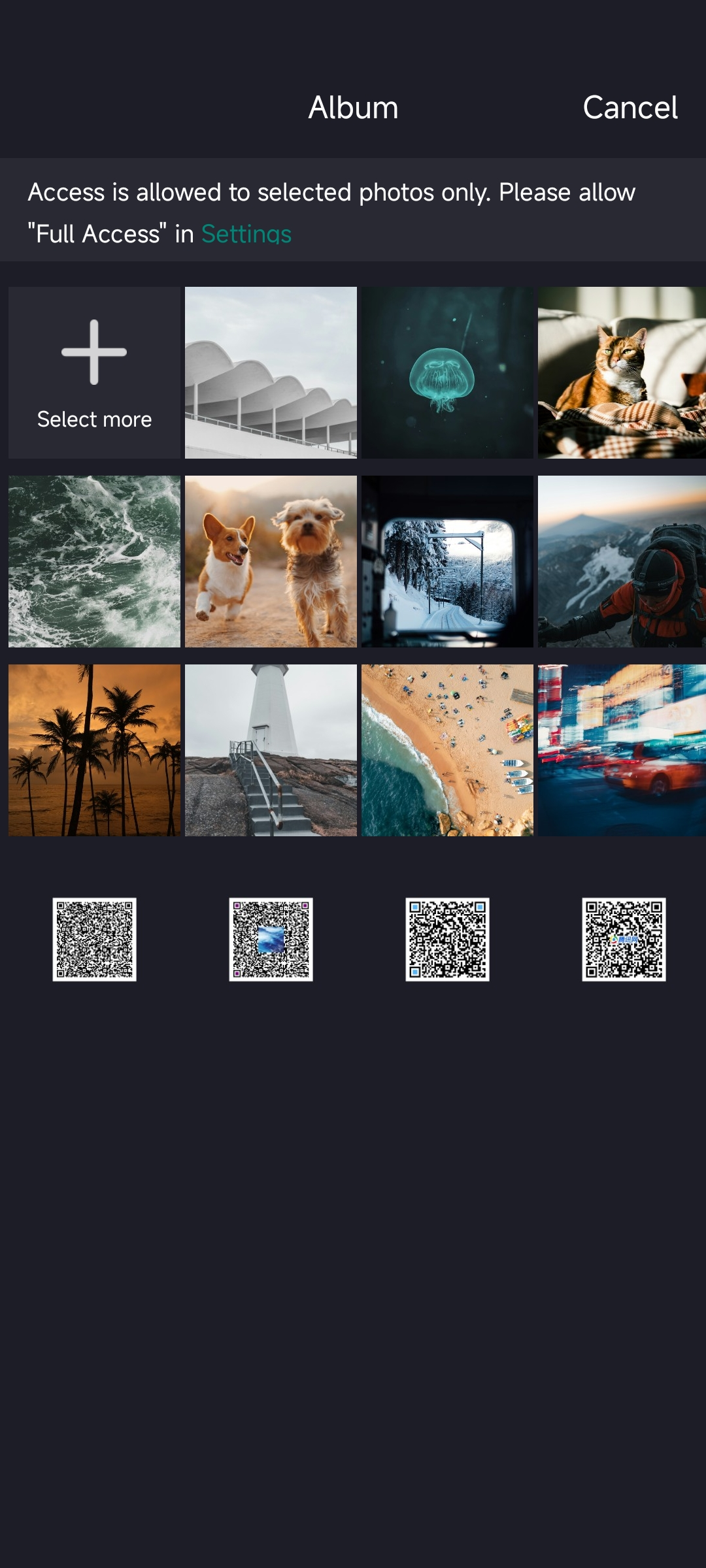

在 iOS 14.0+ 和 Android 14+ 的设备上，如果应用访问系统相册受到限制，点击 相册 后仅显示用户授权访问的照片。下图为受限访问的相册界面：

Prerequisites

1. Integrate the Player Network SDK

2. iOS Configuration

caution

For iOS applications using Unity, please complete the Game Center configuration before implementing QR code plugin functionality.

Add the following key-value pair to the project's Info.plist file：

• UISupportsRightToLeft: Enable support for right-to-left languages.

• CFBundleAllowMixedLocalizations：Allows applications to use mixed language localizations.

• PHPhotoLibraryPreventAutomaticLimitedAccessAlert：Prevents the popup of the "Limited Photo Access" alert.

• NSPhotoLibraryUsageDescription：Description of why the application accesses the photo library.

• NSCameraUsageDescription：Description of why the application uses the camera

    <plist version="1.0">
    <dict>
        <key>UISupportsRightToLeft</key>
        <true/>

        <key> CFBundleAllowMixedLocalizations</key>
        <true/>

        <key> PHPhotoLibraryPreventAutomaticLimitedAccessAlert</key>
        <true/>

        <key> NSPhotoLibraryUsageDescription</key>
        <string> This application requires access to your photo library in order to upload and share photos.</string>

        <key> NSCameraUsageDescription</key>
        <string> This application needs access to your camera to take photos or videos for profile or content publishing.</string>
    </dict>
    </plist>

Register Callback Functions

Add the following callback handling:

Unity

// Add callback function
public void AddQRCodeObserver()
{
    INTLAPI.AddQRCodeResultObserver(OnQRCodeResultEvent);
}

// Remove callback function
public void RemoveQRCodeObserver()
{
    INTLAPI.RemoveQRCodeResultObserver(OnQRCodeResultEvent);
}

// Handle INTLQRCodeResult callback event
private void OnQRCodeResultEvent(INTLQRCodeResult qrCodeRet)
{
    Debug.Log("OnQRCodeResultEvent");

    string methodTag = "";

    if (qrCodeRet.MethodId == (int)INTLMethodID.INTL_QRCODE_OPEN_SCANNER)
    {
        methodTag = "OpenQRScanner";
    }
    else if (qrCodeRet.MethodId == (int)INTLMethodID.INTL_QRCODE_SHOW)
    {
        methodTag = "ShowQRCode";
    }
    else if (qrCodeRet.MethodId == (int)INTLMethodID.INTL_QRCODE_SET_ICON)
    {
        methodTag = "SetIcon";
    }
    else if (qrCodeRet.MethodId == (int)INTLMethodID.INTL_QRCODE_SET_POSITION_MARKER_COLOR)
    {
        methodTag = "SetPositionMarkerColor";
    }
}

Unreal Engine

// Add callback function
FINTLQRCodeEvent QRCodeEvent;
QRCodeEvent.AddUObject(this, &UQRCodeWindow::OnQRCodeResult_Implementation);
UINTLSDKAPI::SetQRCodeResultObserver(QRCodeEvent);

// Remove callback function
UINTLSDKAPI::GetQRCodeResultObserver().Clear();

// Handle FINTLQRCodeResult callback event
void UQRCodeWindow::OnQRCodeResult_Implementation(FINTLQRCodeResult qrCodeRet)
{
    UE_LOG(LogTemp, Log, TEXT("==== OnQRCodeResultEvent"));

    FString methodTag;

    if (qrCodeRet.MethodId == INTL_QRCODE_OPEN_SCANNER)
    {
		methodTag = TEXT("OpenQRScanner");
    }
    else if (qrCodeRet.MethodId == INTL_QRCODE_SHOW)
    {
		methodTag = TEXT("ShowQRCode");
    }
    else if (qrCodeRet.MethodId == INTL_QRCODE_SET_ICON)
    {
		methodTag = TEXT("SetIcon");
    }
    else if (qrCodeRet.MethodId == INTL_QRCODE_SET_POSITION_MARKER_COLOR)
    {
		methodTag = TEXT("SetPositionMarkerColor");
    }
}

OpenQRScanner

Open the QR code scanner according to the specified parameters.

• qrCodeContent: JSON string containing information required to generate QR code, customizable as needed

Unity

string qrCodeContent = "{\
    \"deeplink\": \"https://example.com/path\", \
    \"openid\": \"user-12345\", \
    \"additionalKey1\": \"value1\"\
}";

INTLAPI.OpenQRScanner(qrCodeContent);

Unreal Engine

FString qrCodeContent = TEXT("{\"deeplink\":\"https://example.com/path\", "
                             "\"openid\":\"user-12345\", "
                             "\"additionalKey1\":\"value1\"}");

UINTLSDKAPI::OpenQRScanner(qrCodeContent);

ShowQRCode

Display the specified QR code content.The default style of QR codes varies slightly across platforms.

• qrCodeContent: JSON string containing information required to generate QR code, customizable according to game needs

Unity

string qrCodeContent = "{\
    \"deeplink\": \"https://example.com/path\", \
    \"openid\": \"user-12345\", \
    \"additionalKey1\": \"value1\"\
}";

INTLAPI.ShowQRCode(qrCodeContent);

Unreal Engine

FString qrCodeContent = TEXT("{\"deeplink\":\"https://example.com/path\", "
                             "\"openid\":\"user-12345\", "
                             "\"additionalKey1\":\"value1\"}");

UINTLSDKAPI::ShowQRCode(qrCodeContent);

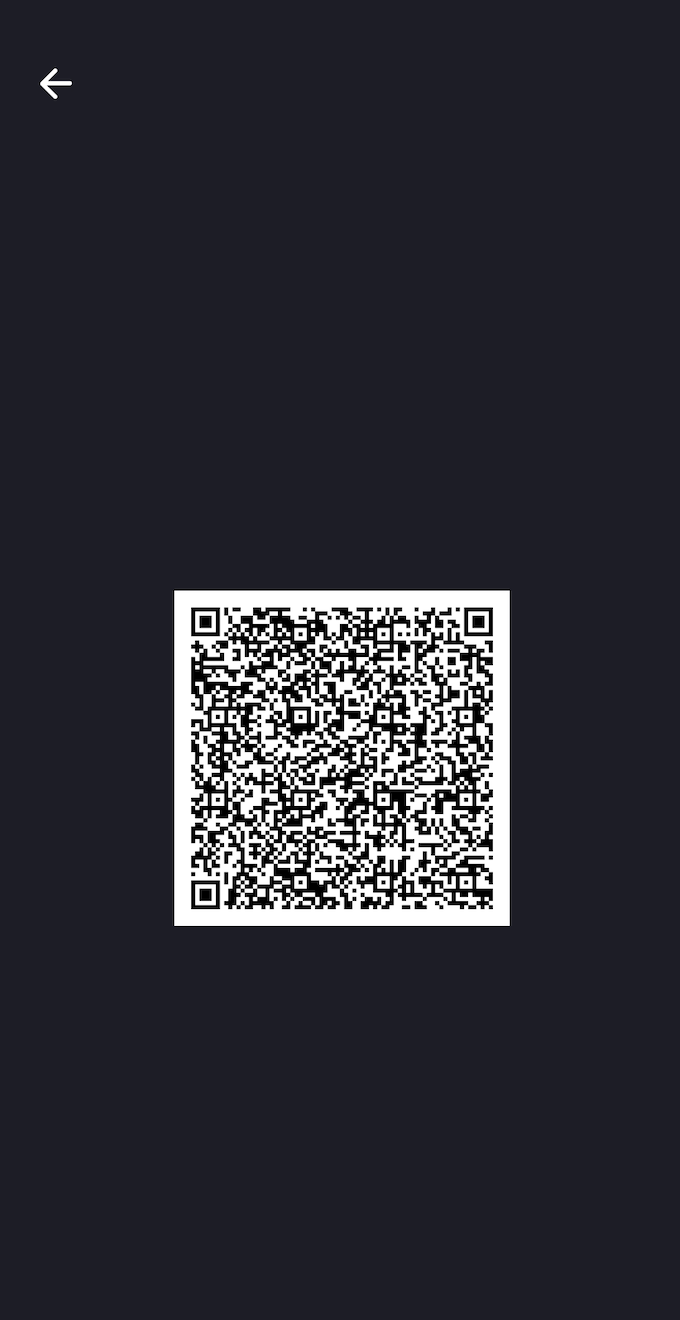

Android system default QR code display:

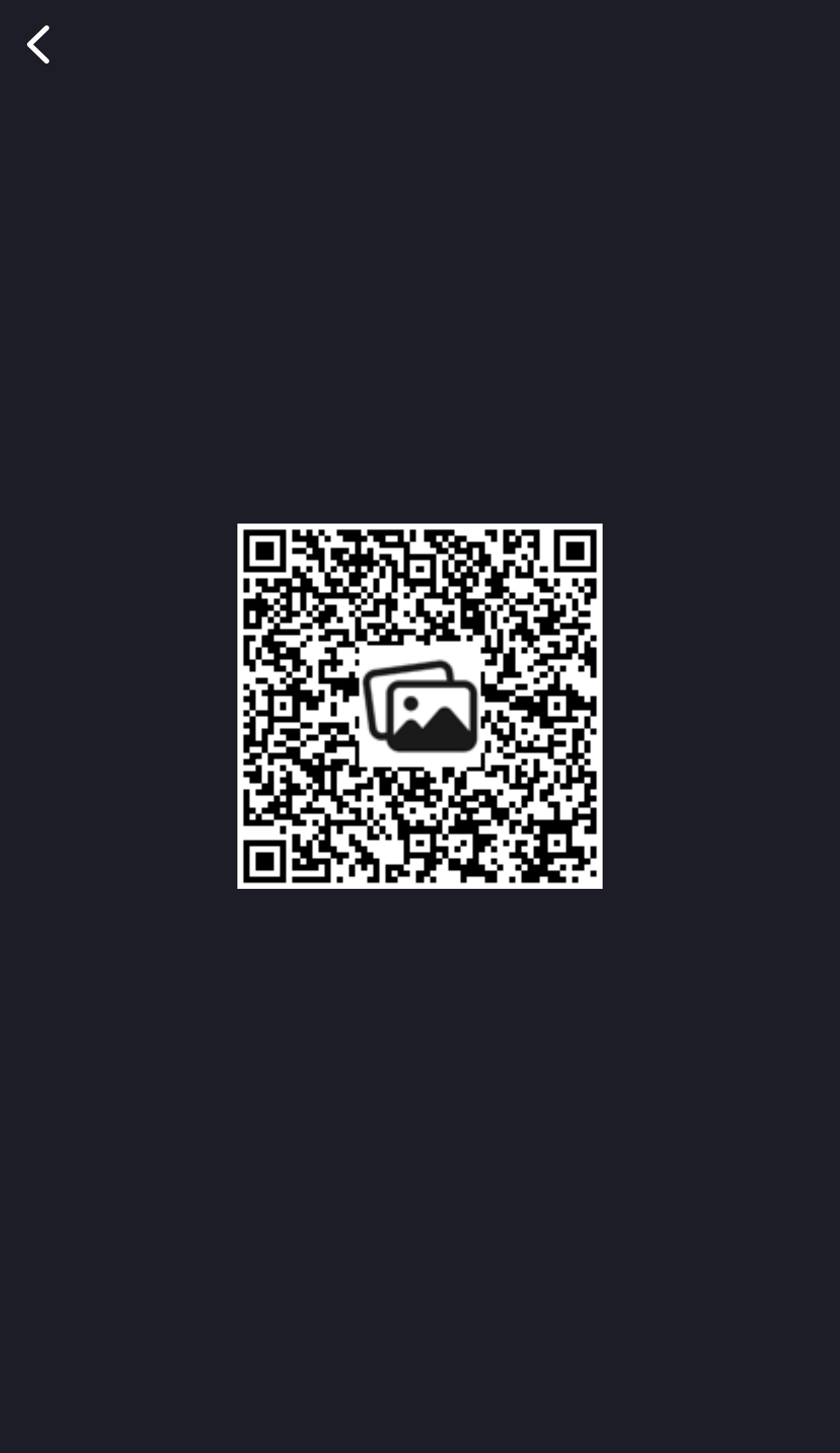

iOS system default QR code display:

SetIcon

Set a custom icon in the QR code.

• imageURL: URL of the icon

Unity

string imageURL = "https://example.com/icon.png";

INTLAPI.SetIcon(imageURL);

Unreal Engine

FString imageURL = TEXT("https://example.com/icon.png");

UINTLSDKAPI::SetIcon(imageURL);

SetPositionMarkerColor

Set the position marker color in the QR code.

• hexCode: Hexadecimal string of locator color, e.g., #FF5733

Unity

string hexCode = "#FF5733";

INTLAPI.SetPositionMarkerColor(hexCode);

Unreal Engine

FString hexCode = TEXT("#FF5733");

UINTLSDKAPI::SetPositionMarkerColor(hexCode);
