Report Funnel Event (ReportFunnel)

AndroidiOSWindows
If you are using Unreal Engine, please refer to Unreal Engine SDK's ReportFunnel Unreal Engine SDK's ReportFunnel.

Client funnel events include Update Funnel, Auth Funnel, Policy Funnel, and Payment Funnel. Data reported from funnel events is used to calculate funnel analysis conversion rates.The interface is called to report data after the corresponding code of each funnel event is executed.

Update Funnel (UpdateFunnel):

Authentication Funnel (AuthFunnel):

Compliance Funnel (PolicyFunnel):

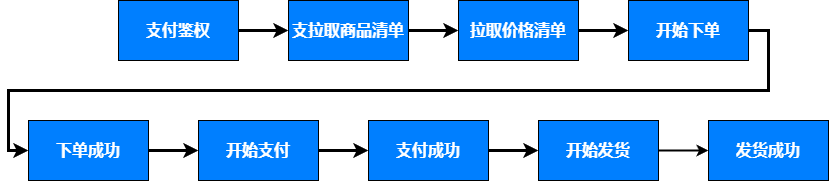

Payment Funnel (PaymentFunnel):

Function Definition

public static void ReportFunnel(FINTLFunnelStep kstep_name, int error_code = 0)

Input Parameters

Parameters	Type	Explanation	Remark
kstep_name	FINTLFunnelStep	Player Network SDK preset points, refer to the table for detailed enumeration values.	Mandatory
error_code	int	Error code, default is 0, 0 means success, other error codes indicate failure.	Optional

Player Network SDK Preset Points (FINTLFunnelStep)

Naming rules: k[Primary Event Name][Secondary Event Name]

Primary event name	Secondary event name	Pre-embedded point location	Description
Start	AppLaunch	kStartAppLaunch	Launch Game
Agreement	ShowUserAgreement	kAgreementShowUserAgreement	Show User Agreement
	FinishUserAgreement	kAgreementFinishUserAgreement	Complete User Agreement Reading
Update	CheckForUpdates	kUpdateCheckForUpdates	Check for Updates
	DownloadUpdates	kUpdateDownloadUpdates	Download Updates
	UnzipFile	kUpdateUnzipFiles	Unzip Update Files
	CompleteUpdates	kUpdateCompleteUpdates	Complete Updates
Auth	ConfirmLoginChannel	kAuthConfirmLoginChannel	Confirm login channel
	ChannelAuthSuccess	kAuthChannelAuthSuccess	Channel Authentication Successful
	LoginAuthSuccess	kAuthLoginAuthSuccess	Login Authentication Successful
Policy	QueryCompliance	kPolicyQueryCompliance	Query compliance status
	SelectRegionAndAge	kPolicySelectRegionAndAge	Select Region and Age
	AgreePrivacyPolicy	kPolicyAgreePrivacyPolicy	Agree to Privacy Policy
	PrivacyAuthSuccess	kPolicyPrivacyAuthSucces	Compliance Certification Passed
Navigate	ShowServerList	kNavigateShowServerList	Show server list
	SubmitArea	kNavigateSubmitArea	Submit Region
	ConfirmArea	kNavigateConfirmArea	Confirm Region
	ConnectSvrSuccess	kNavigateConnectSvrSuccess	Connect to Server Successfully
EnterGame	ShowEnterGame	kEnterGameShowEnterGame	Show Enter Game
	ClickIntoGame	kEnterGameClickIntoGame	Click to Enter Game
Lobby	EnterLobbySuccess	kLobbyEnterLobbySuccess	Enter Game Lobby
Pay	Authentication	kPayAuthentication	Payment authentication
	PullUpTheListOfGoods	kPayPullUpTheListOfGoods	Pull Up Goods List
	PullUpPriceList	kPayPullUpPriceList	Pull Up Price List
	StartOrder	kPayStartOrder	Start Order
	SuccessfulOrder	kPaySuccessfulOrder	Order Successful
	StartPayment	kPayStartPayment	Start Payment
	SuccessfulPayment	kPaySuccessfulPayment	Payment Successful
	StartDelivery	kPayStartDelivery	Start Delivery
	SuccessfulDelivery	kPaySuccessfulDelivery	Delivery Successful
AuthRegister	RegisterSuccess	kAuthRegisterSuccess	Registration Successful
Undefine		kUNDEFINE	Undefined Preset Point

Code sample

int error_code = 0;
INTLAPI.ReportFunnel(FINTLFunnelStep.kStartAppLaunch, error_code);
