Windows

The purpose of this article is to explain how to set up Google Authentication so that your game can be logged in through the Google channel using the Player Network login authentication service.

Prerequisites

1. Set up your game in the Google Play admin center

note

For the IEGG project, please contact [miaruan (Ruan Mingjun)] for Google Apps registration and configuration.

1. Create Google Apps

Follow the prompts to register an account on Google Play Console.

info

Google charges a $25 service fee.Please have your credit card ready in advance.

1. Go to Google Play Console.
2. On the All apps page, click Create app to create the game app.

3. Enter the application information.


2. Configuring the Play game service

Set up the Play game service to manage game metadata and automate game production and distribution tasks.

1. Go to Google Play Console.
2. In the left navigation bar, select Grow users > Play Games Services > Setup and management > Configuration.
3. Under Which Play Games Services project do you want to use, select the corresponding option to create a Play Games Services project.

4. In the Properties section, click Edit Properties.
5. Enter the basic information about the game and click Save changes.


3. Add a credential to connect the OAuth 2.0 client ID to the game

1. Go to Google Cloud Platform.
2. In the left navigation bar, click OAuth consent screen.
3. Follow the instructions to set up the OAuth OAuth consent screen.

4. Click Clients on the left navigation bar.
5. On the Clients page, select CREATE CLIENT > Create OAuth Client ID to create an OAuth client ID.
   I
6. In the Application type list, click Web application.
7. Enter the required information.
   In the Authorization Redirection section of the Web Application details page, add https://test-common-web.intlgame.com/jssdk/googlelogincallback.html and https://common-web.intlgame .com/jssdk/googlelogincallback.html.

8. Click SAVE to complete the configuration.
9. Go to the Web application details page.

10. Locate the Client ID and Client Secret and enter them into the Player Network console's game configuration.

11. Click Audience > ADD USERS to add a login test user.


4. Adding game testers

1. Go to Google Play Console.
2. In the left navigation bar, select Grow users > Play Games Services > Setup and management > Testers.
3. In the Testers tab, click Add testers to add testers to your game.


note

Only testers can log in until the game app is released.Make sure that the application is in a test state.

5. Configuring achievements and leaderboards

Locate the Achievements and Leaderboards features on the Gaming Services screen and configure them as needed.

6. Get Google API ID

Access the Information Center from the Google Cloud Platform panel.The Google API ID is the Project No. on this page.

7. Get the Client ID and Client secret.

Follow the steps in Add credentials to link OAuth 2.0 client IDs to the game to get application information.

2. Obtain Player Network Console login account.
3. Create a new project for your game, or join an existing one.
4. Download SDK.
5. Integrate the SDK.
6. Add Google as a business login authentication method in the Player Network console.

Step 1：Configure SDK for Google Sign-in

1. Open your project's INTLConfig.ini file:

INTLConfig.ini

[INTL environment]
# WARNING: You should change this URL to the production environment when you release your game.
INTL_URL = https://test.intlgame.com
GAME_ID = {INTL_GAME_ID}
SDK_KEY = {INTL_SDK_KEY}
[INTL Log]
LOG_LEVEL = 1
LOG_CONSOLE_OUTPUT_ENABLE = 1
LOG_FILE_OUTPUT_ENABLE = 1
LOG_ENCRYPT_ENABLE = 0
LOG_COMPRESS_ENABLE = 0
[Google Channel Configuration]
GOOGLE_WEBVIEW_LOGIN_ENABLE = 0
GOOGLE_CLIENT_REDIRECT_URL = {INTL_GOOGLE_CLIENT_REDIRECT_URL}

• Set the SDK backend environment to INTL_URL = https://test.intlgame.com.
• Replace {INTL_GAME_ID} and {INTL_SDK_KEY} with the values of GAME_ID and SDK_KEY assigned by the Player Network Console.
• Set LOG_LEVEL = 1, LOG_CONSOLE_OUTPUT_ENABLE = 1, LOG_FILE_OUTPUT_ENABLE = 1, LOG_ENCRYPT_ENABLE = 0 and LOG_COMPRESS_ENABLE = 0 to output console logs and log files without encrypting or compressing the output without encrypting or compressing the output.
• Set GOOGLE_WEBVIEW_LOGIN_ENABLE to 0 to log in to Google using the system browser on Windows.
• Replace {INTL_GOOGLE_CLIENT_REDIRECT_URL} with Web Client Key., is the client ID of the web application in the Credentials section of the API OAuth configuration process, also referred to as the Server Client ID in the API OAuth 2.5 configuration process.

Step 2：Add Google Login

info

Using a browser login returns data to the system using the loopback IP address.There is no need to configure Windows Firewall because the data does not leave the system and does not need to pass through Windows Firewall.

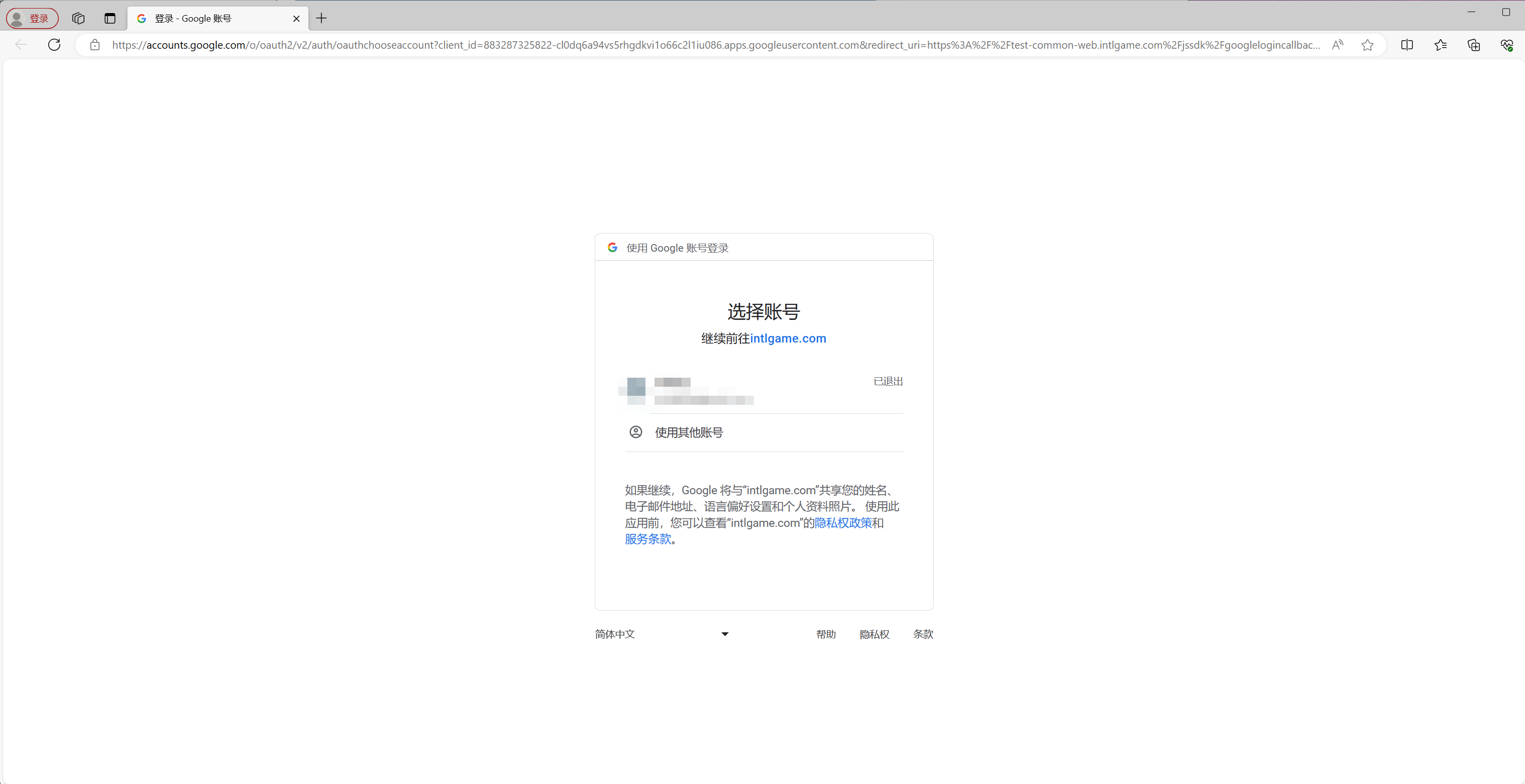

Games on the Windows platform that require the player to sign in via Google will need to open the Google Sign In page.Developers can open the web client for login in two ways：

• To open the Google login page using the Player Network SDK's built-in WebView, set extraJson to "webview_login":true when calling the login API.
• To open the Google login page using the system browser, set extraJson to "webview_login":false when calling the login API.

In addition, developers can configure the default way to open Google login pages by using the GOOGLE_WEBVIEW_LOGIN_ENABLE value in the INTLConfig configuration file.

All Google actions require a connection to Google services.

AuthLogin

During automatic sign-in, the device may not be able to connect to Google services.It is therefore recommended to let Player Network SDK connect to Google services during automatic login by default.(Game teams can disable this connection by configuring the GOOGLE_LOGOUT_NEED_CONNECT field in the Google Channel Configuration section of the INTLConfig configuration file.).

Log on to

Before calling Google Login, the Player Network SDK checks to see if Google Mobile Services (GMS) is available.The login service can only be invoked when GMS is available.If GMS is not available, the Player Network SDK will return the error code sent by Google to the game via the ThirdCode field of INTLAuthResult.

Return Code	Return value	misdescription
SERVICE_MISSING	1	GMS is not available on the device.
SERVICE_VERSION_UPDATE_REQUIRED	2	The installed version of GMS is out of date.
SERVICE_DISABLED	3	GMS is disabled.
SERVICE_INVALID	9	The version of GMS installed is incorrect.
SERVICE_UPDATING	18	The GMS on the device is being updated.

For more information, see Google Docs and Google Frequently Asked Questions

1. Register login-related callbacks.

Unity

// Add callbacks
public void AddAuthObserver()
{
    INTLAPI.AddAuthResultObserver(OnAuthResultEvent);
}

// Remove callbacks
public void RemoveAuthObserver()
{
    INTLAPI.RemoveAuthResultObserver(OnAuthResultEvent);
}

// Process the INTLAuthResult callback
public void OnAuthResultEvent(INTLAuthResult ret)
{
    Debug.Log($"MethodID: {ret.MethodId}");

    string methodTag = "";
    if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_LOGIN)
    {
        methodTag = "Login";
    }
    else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_BIND)
    {
        methodTag = "Bind";
    }
    else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_AUTOLOGIN)
    {
        methodTag = "AutoLogin";
    }
    else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_QUERY_USER_INFO)
    {
        methodTag = "QueryUserInfo";
    }
    else if (authRet.MethodId == (int)INTLMethodID.INTL_AUTH_GET_AUTH_RESULT)
    {
        methodTag = "GetAuthResult";
    }
}

Unreal Engine

C++ Event Handling (above v1.15)

//configure callback
FINTLAuthEvent authEvent;
authEvent.AddUObject(this, &OnAuthResult_Implementation);
UINTLSDKAPI::SetAuthResultObserver(authEvent);
// Remove callbacks
UINTLSDKAPI::GetAuthResultObserver().Clear();

void OnAuthResult_Implementation(FINTLAuthResult ret)
{
    UE_LOG(LogTemp, Warning, TEXT("MethodID: %d"), ret.MethodId);
}

Unreal Event Handling

void OnAuthResult_Implementation(FINTLAuthResult ret)
{
    UE_LOG(LogTemp, Warning, TEXT("MethodID: %d"), ret.MethodId);
}

2. Call the AutoLogin interface to log in automatically.

Unity

INTLAPI.AutoLogin();

Unreal Engine

UINTLSDKAPI::AutoLogin();

3. If automatic login fails, call the Login interface to let the player log in manually.

Unity

INTLAPI.Login(INTLChannel.Google,"","\"webview_login\":true"); //Open the Google login page using the WebView component of the Player Network SDK

Unreal Engine

UINTLSDKAPI::Login(EINTLLoginChannel::kChannelGoogle,"","\"webview_login\":true"); //Open the Google login page using the WebView component of the Player Network SDK

4. Synchronize client authentication status with the game backend and wait for the final verification result.

Cancel Login

On the Windows platform, when logging into a three-way channel using the system browser, if the user closes the login screen, the game will not receive the cancel login message in a timely manner.The game triggers the timeout callback only when the login times out.

To solve the above problem, it is recommended that a cancel login button be added to the login screen when logging in using the system browser.Users can actively cancel the login operation by clicking this button.In this case, the game needs to call the CancelLogin interface of the Player Network SDK to ensure that it can respond in a timely manner if the user actively cancels the login.

Unity

INTLAPI.Login(INTLChannel.Google, "", "{\"cancel_login\":1}");
//Available after Player Network SDK 1.17
INTLAPI.CancelLogin(INTLChannel.Google);

Unreal Engine

UINTLSDKAPI::Login(EINTLLoginChannel::kChannelGoogle, "", "{\"cancel_login\":1}");
//Available after Player Network SDK 1.17
UINTLSDKAPI::CancelLogin(EINTLLoginChannel::kChannelGoogle);

[Optional] Set email permission

To get the player's email when logging in to Google, you need to set the corresponding permission, which will return email in the ChannelInfo of AuthResult.

• For compliance considerations, masking of returned email for specific origins can be done. Please contact Player Network Assistant to enable it if needed.
• In the background log, you can report the hash of base64(sha256(email)). Contact Player Network Assistant if needed.
• Can be used to verify whether the player's information or the binding list contains email information. Contact Player Network Assistant if needed.

Enable the email return feature in the Player Network Console by setting return_email to YES. For details, see Third-Party Channel Configuration.

Step 3: Acceptance testing for login functionality

Search for the keyword "AuthResult" in the Player Network SDK logs to confirm whether the channel name and OpenID are returned correctly.If correct, it means the integration configuration is successful, and login functionality has been successfully added.

If you encounter problems during the integration process, please refer to Frequently Asked Questions.

Step 4：Publish the game

Before you are ready to release a production version, create a test version using Android App Bundle.

The nice thing about releasing Beta is that users can download it from Google play, but don't have access to add comments.Specific channels are set up for users to submit feedback.

Creating a production version

1. Go to Google Play Console.

2. In the left navigation bar, select Release > Production.



3. Follow the instructions to create a production version.

Changing the Publishing Status

caution

Authentication may fail if the user does not release the application.

1. Go to the OAuth consent interface page for Google Cloud Platform (https://console.cloud.google.com/apis/credentials/consent).
2. Change PUBLISHING STATUS to PUBLISH APP.
