Discord Social SDK Features

System version requirements

If the system version falls between the two, the plugin can be integrated but its functions will be disabled.

Step 1: Configure Discord Application

info

If you have completed Discord login configuration, you may skip the application creation step.

1.1 Create an application

Register and authenticate your account on the Discord official website.

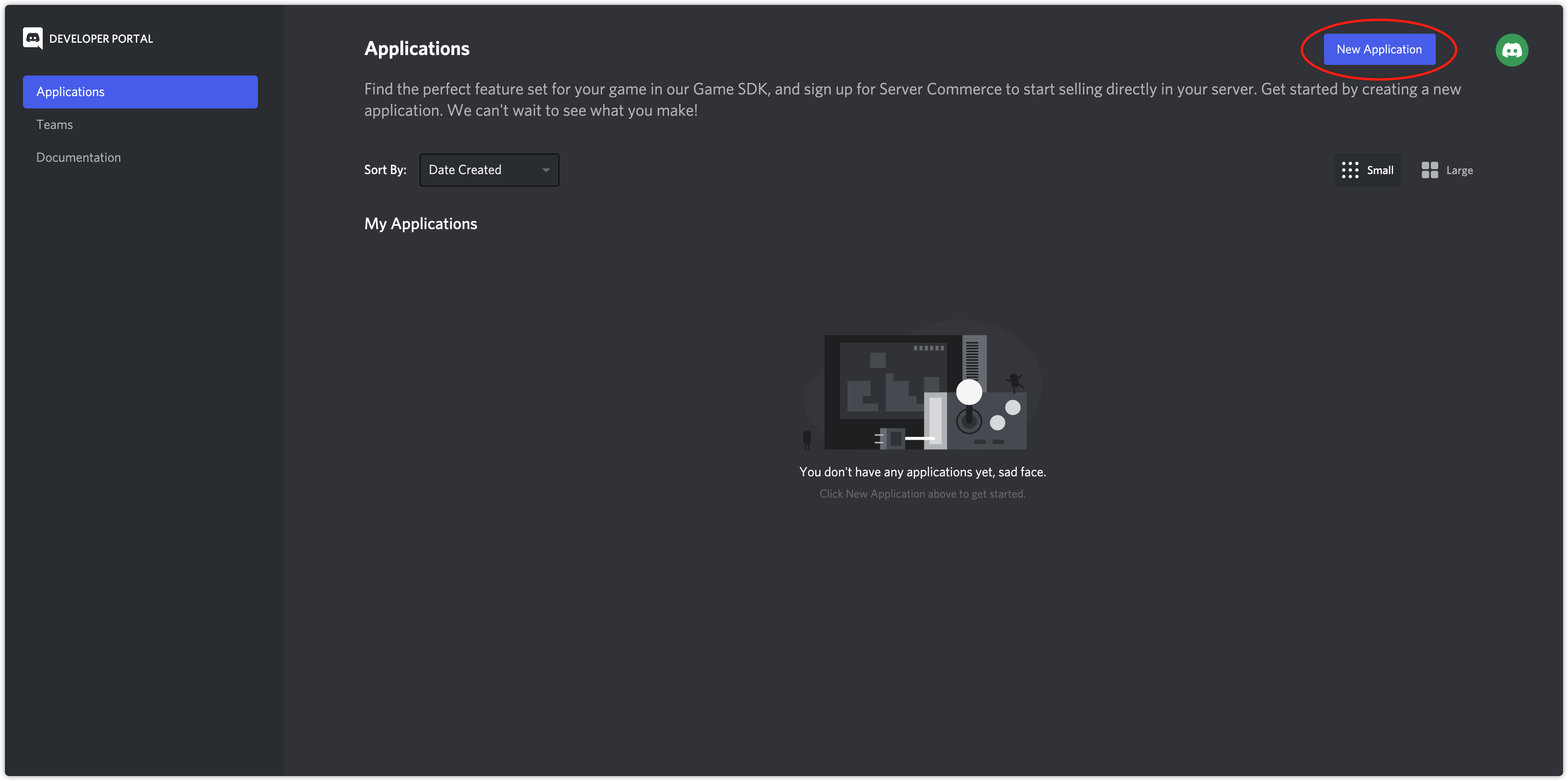

Go to the Developer Platform and click New Application.

Image: Create Application

Enter your application name and click Create.

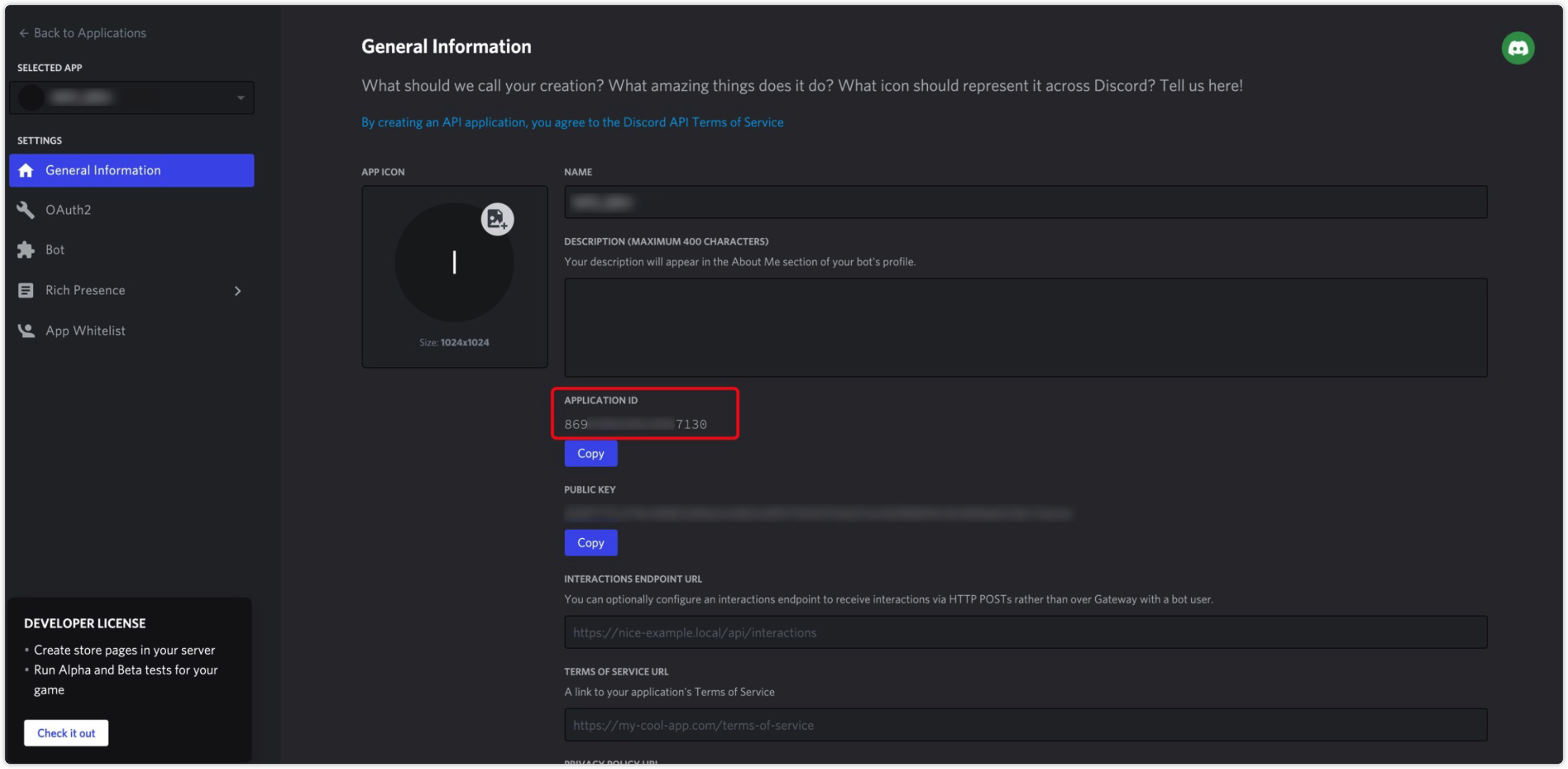

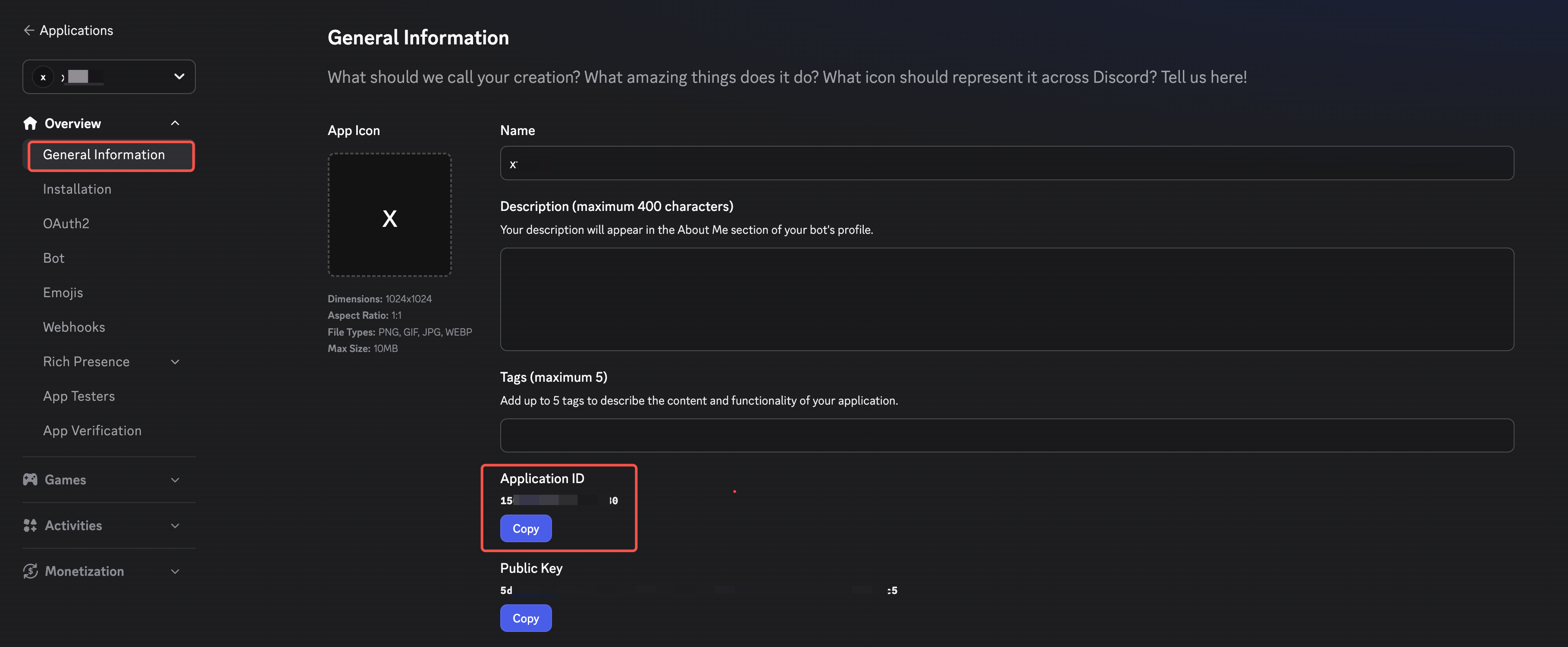

On the General Information page, obtain the APPLICATION ID.

Image: Obtain App ID

Configure the Discord App ID in INTLConfig.ini.

1.2 Apply for SDK access

Go to the Developer Platform.

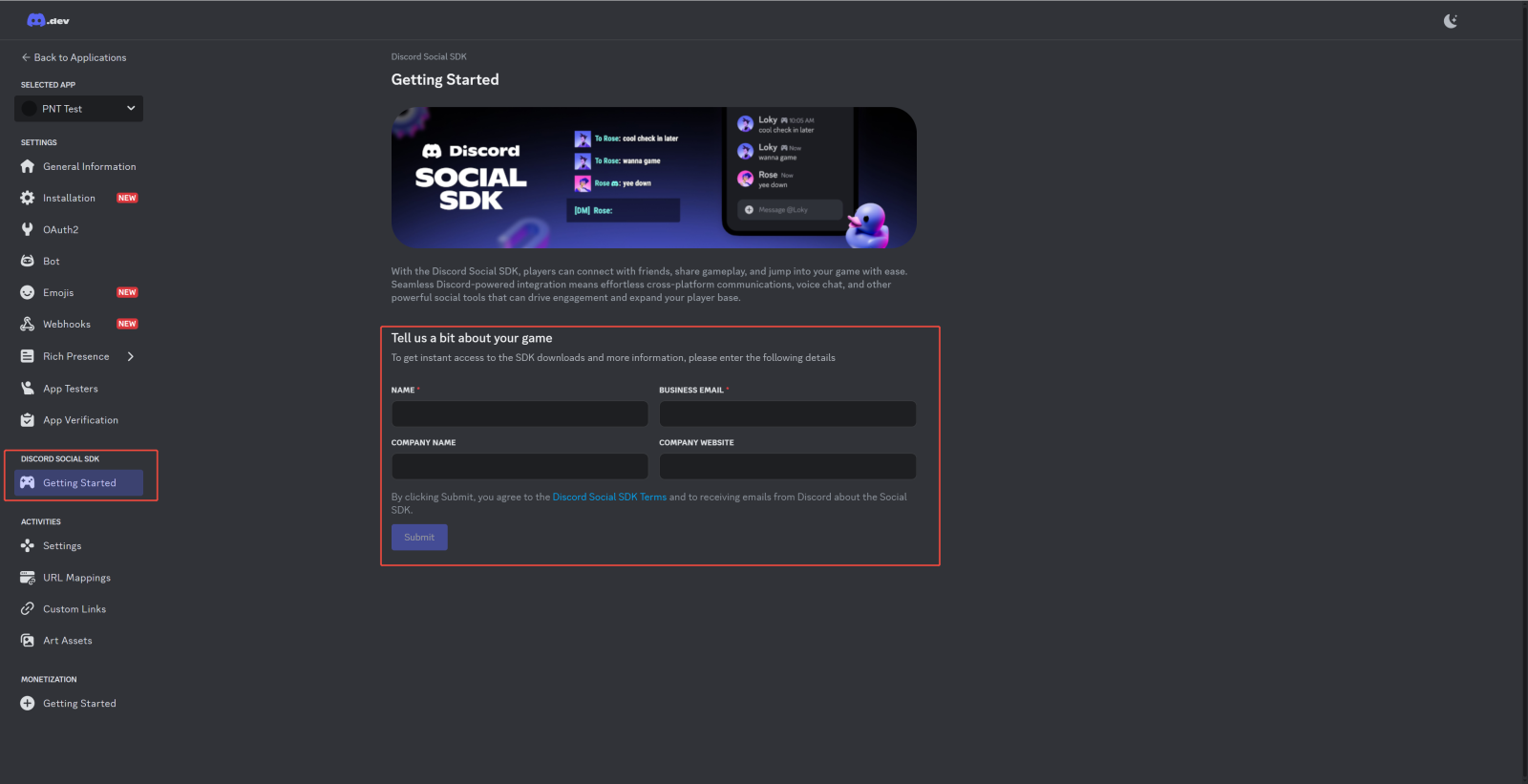

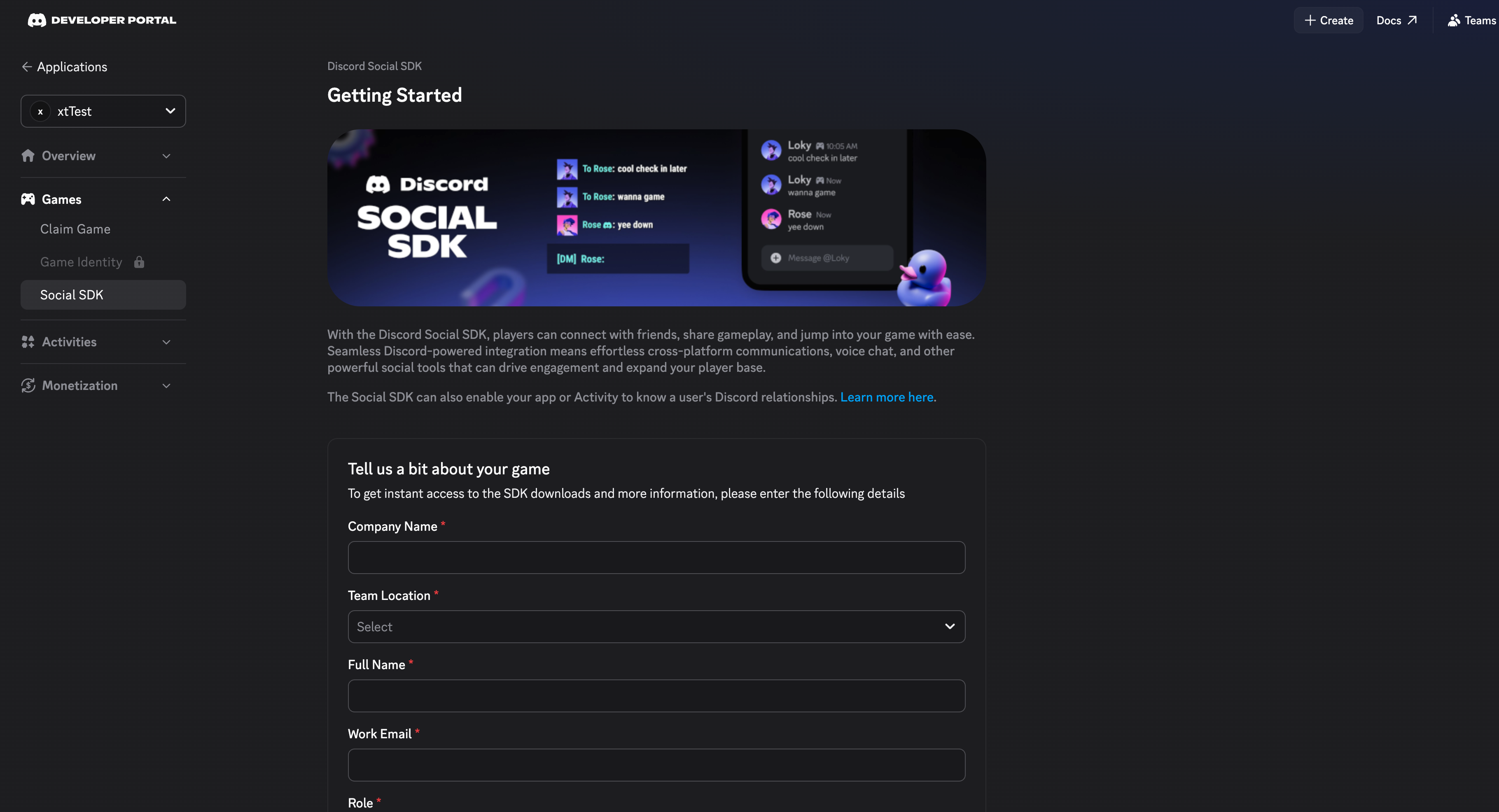

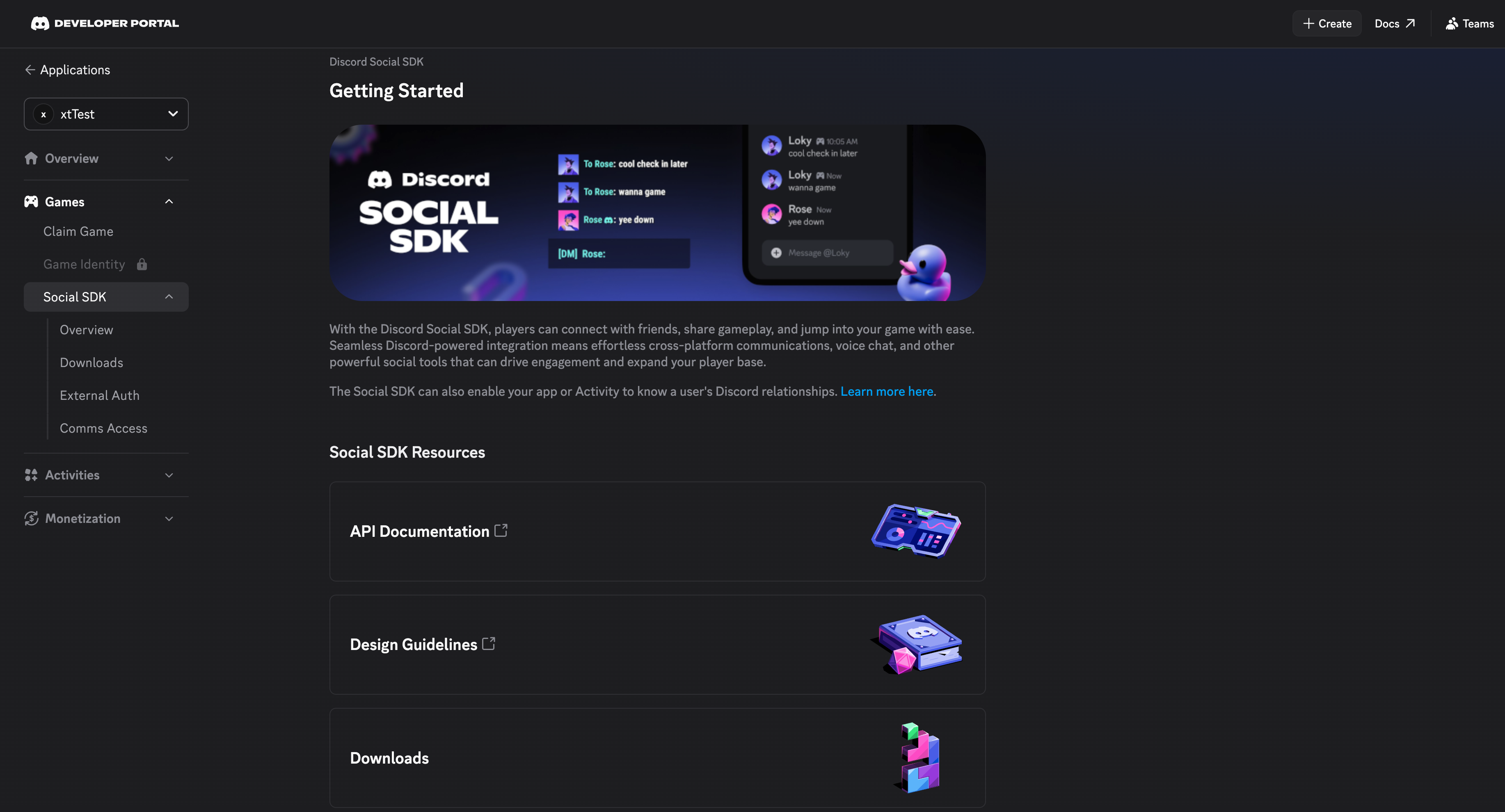

Click Getting Started, fill out the form, and submit.

Image: Fill in form 1

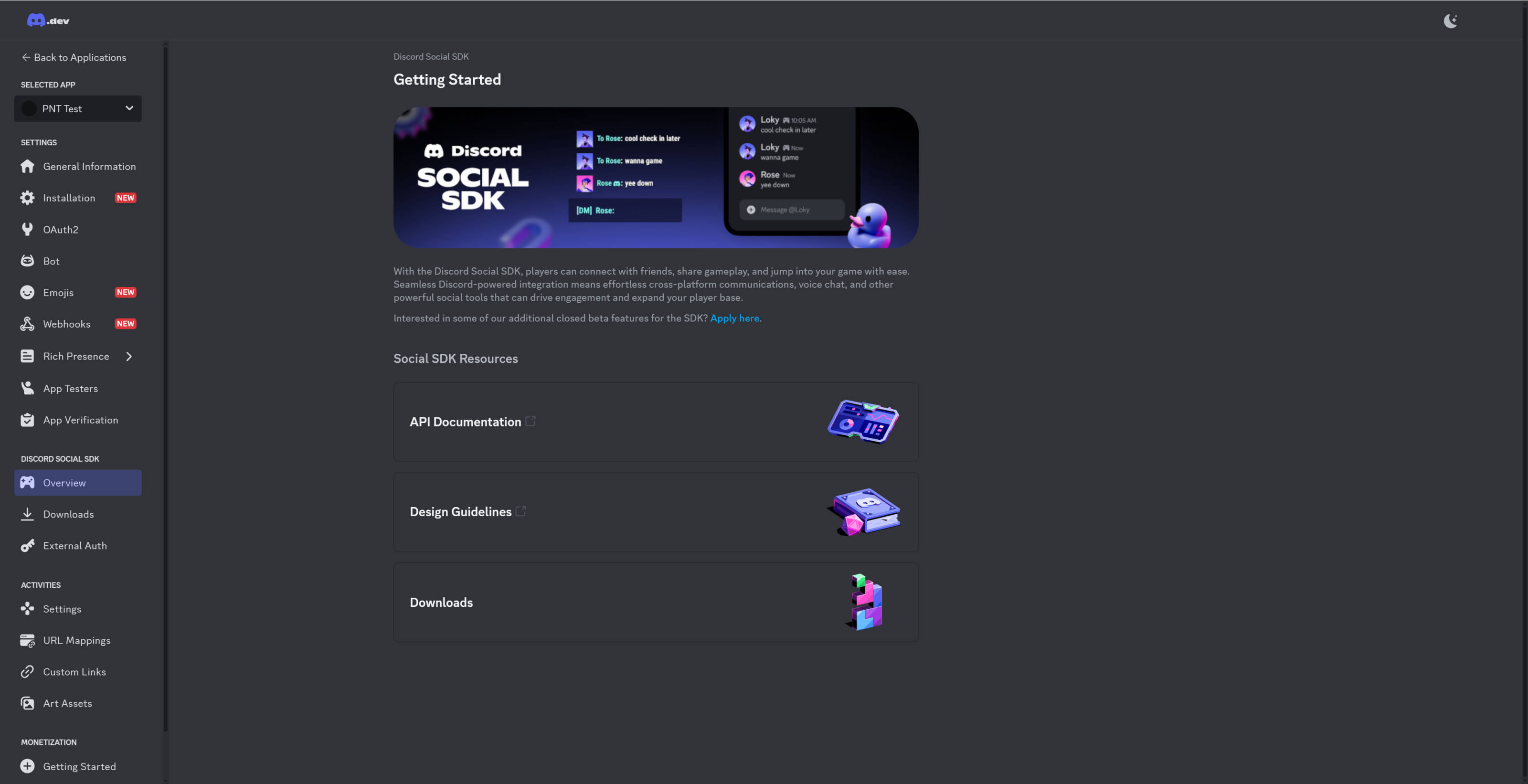

Image: Fill in form 2

Important

Before the official launch of your game, notify the Discord team in advance to enable production permissions.

1.3 Configure OAuth2

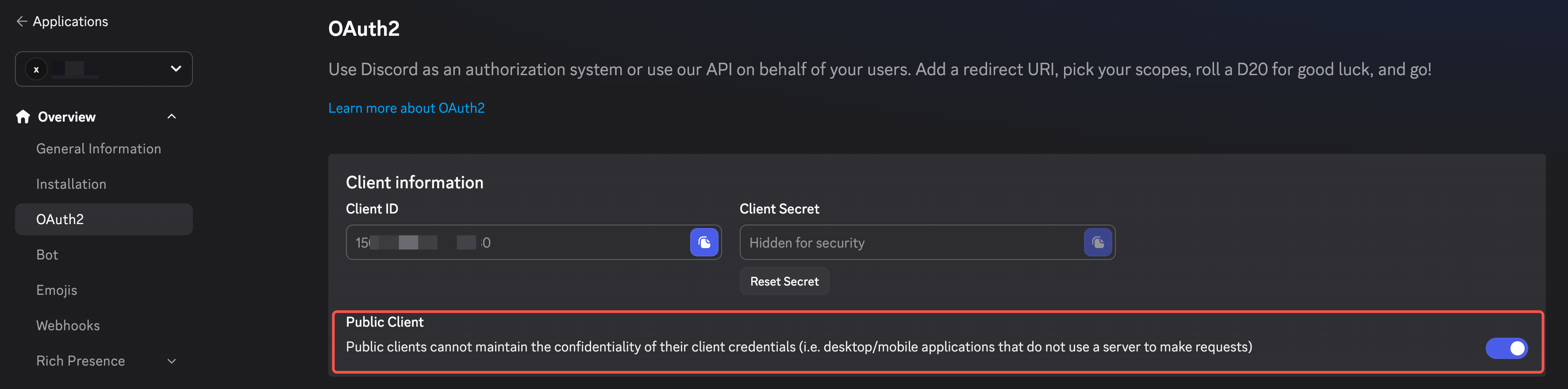

Click OAuth2 and turn on the PUBLIC CLIENT option.

Image: PUBLIC CLIENT

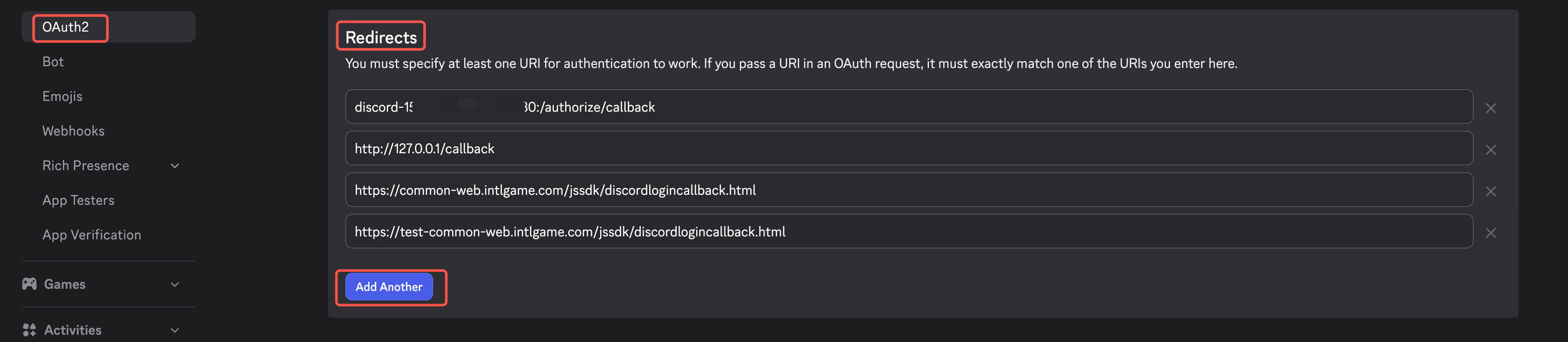

Configure Redirects:
- Android/iOS: discord-{YOUR_APP_ID}:/authorize/callback
- PC: http://127.0.0.1/callback

Image: Configure Redirects

note

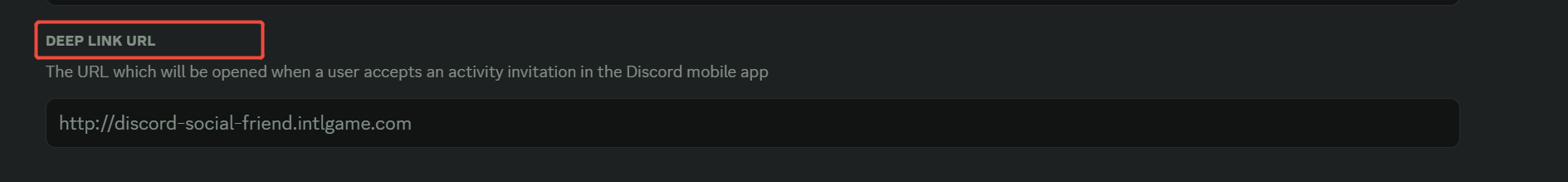

For mobile, configure DeepLink: add the jump URL in General Information → Deep Link URL.

Image: DeepLink configuration

1.4 Configure Rich Presence assets

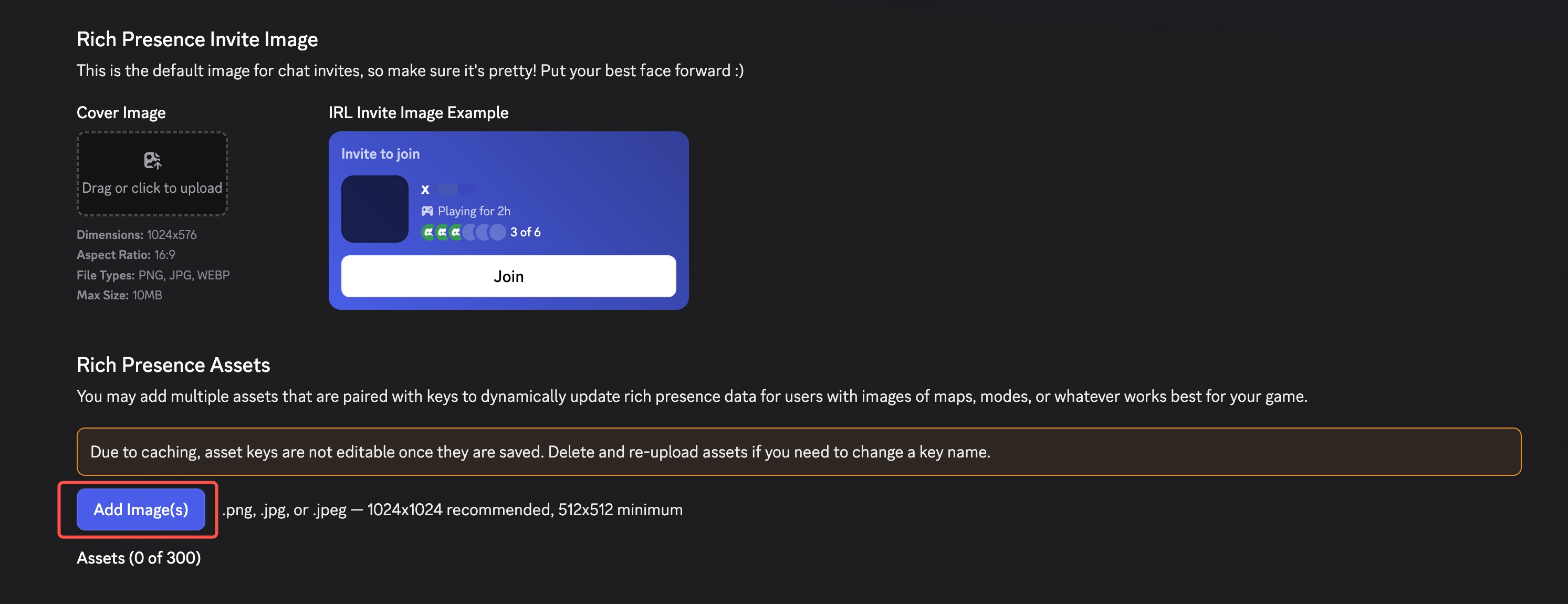

Click Rich Presence.

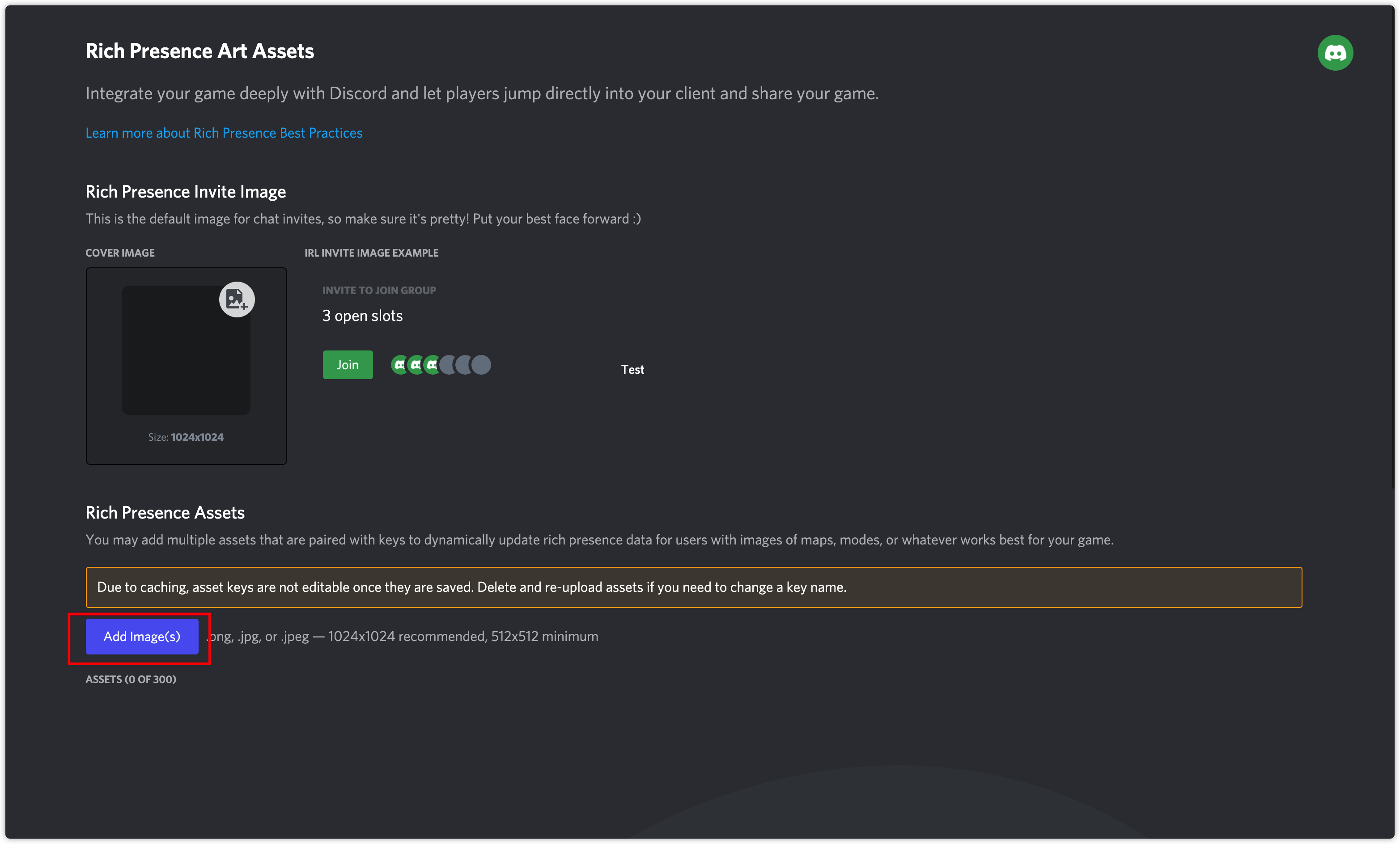

Click Add Image(s) to upload image assets.

Image: Upload assets

Step 2: Register Callback

note

It is recommended to register all callbacks when the game starts.

General Function Callback

Unity
Unreal Engine

// Add/remove callbacks
INTLAPI.AddDiscordBaseResultObserver(OnDiscordBaseResult);
INTLAPI.RemoveDiscordBaseResultObserver(OnDiscordBaseResult);

// Handle callback
private void OnDiscordBaseResult(INTLBaseResult baseRet)
{
    switch (baseRet.MethodId)
    {
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_AUTHORIZE:
            // Authorization callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_CREATE_LOBBY:
            // Create/join lobby callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_LEAVE_LOBBY:
            // Leave lobby callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_SET_RICH_PRESENCE:
            // Set game status callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_SEND_MESSAGE:
            // Send message callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_REMOVE_FRIEND:
            // Remove friend callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_ADD_FRIEND_BY_ID:
            // Add friend by ID callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_ADD_FRIEND_BY_NAME:
            // Add friend by username callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_ACCEPT_FRIEND_REQUEST:
            // Accept friend request callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_SEND_INVITE_TO_FREIND:
            // Send invite callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_ACCEPT_INVITE_FROM_FRIEND:
            // Accept invite callback
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_ON_RELATIONSHIP_CHANGED:
            // Notification for friend list changes, refresh list recommended
            break;
        case (int)INTLMethodID.INTL_FRIEND_DISCORD_ON_LOBBY_MEMBER_CHANGED:
            // Notification for lobby member changes, refresh status recommended
            break;
    }
}

// Configure callback
UINTLSDKAPI::SetDiscordBaseRetObserver(callback);
UINTLSDKAPI::GetDiscordBaseRetObserver();
UINTLSDKAPI::GetDiscordBaseRetObserver().Clear();

// Handle callback
void INTLObserverEventsHandler::OnDiscordBaseRet_Implementation(FINTLBaseResult ret)
{
    switch (ret.method_id_)
    {
        case kMethodIDFriendDiscordAuthorize:
            // Authorization callback
            if(ret.ret_code_ == ErrorCode::SUCCESS)
                // Call other functions
            break;
        case kMethodIDFriendDiscordCreateLobby:
            // Create/join lobby callback
            break;
        case kMethodIDFriendDiscordLeaveLobby:
            // Leave lobby callback
            break;
        case kMethodIDFriendDiscordSetRichPresence:
            // Set game status callback
            break;
        case kMethodIDFriendDiscordSendMessage:
            // Send message callback
            break;
        case kMethodIDFriendDiscordRemoveFriend:
            // Remove friend callback
            break;
        case kMethodIDFriendDiscordAddFriendByID:
            // Add friend by ID callback
            break;
        case kMethodIDFriendDiscordAddFriendByName:
            // Add friend by username callback
            break;
        case kMethodIDFriendDiscordAcceptFriendRequest:
            // Accept friend request callback
            break;
        case kMethodIDFriendDiscordSendInviteToFriend:
            // Send invite callback
            break;
        case kMethodIDFriendDiscordAcceptInviteFromFriend:
            // Accept invite callback
            break;
        case kMethodIDFriendDiscordOnRelationshipChanged:
            // Notification for friend list changes, refresh list recommended
            break;
        case kMethodIDFriendDiscordOnLobbyMemberChanged:
            // Notification for lobby member changes, refresh status recommended
            break;
    }
}

Personal Information Callback

Unity
Unreal Engine

INTLAPI.AddDiscordUserResultObserver(OnDiscordUserResult);
INTLAPI.RemoveDiscordUserResultObserver(OnDiscordUserResult);

private void OnDiscordUserResult(INTLDiscordUserResult userRet)
{
    if (userRet.MethodId == (int)INTLMethodID.INTL_FRIEND_DISCORD_GET_CONNECTED_USER)
    {
        // Handle user info
    }
}

UINTLSDKAPI::SetDiscordGetConnectedUserRetObserver(callback);
UINTLSDKAPI::GetDiscordGetConnectedUserRetObserver();
UINTLSDKAPI::GetDiscordGetConnectedUserRetObserver().Clear();

void INTLObserverEventsHandler::OnDiscordGetConnectedUserRet_Implementation(FINTLDiscordUserResult ret)
{
    // Handle user info
}

Friend List Callback

Unity
Unreal Engine

INTLAPI.AddDiscordFriendsResultObserver(OnDiscordFriendResult);
INTLAPI.RemoveDiscordFriendsResultObserver(OnDiscordFriendResult);

private void OnDiscordFriendResult(INTLDiscordFriendResult friendRet)
{
    // Handle friends list
}

UINTLSDKAPI::SetDiscordQueryFriendRetObserver(callback);
UINTLSDKAPI::GetDiscordQueryFriendRetObserver();
UINTLSDKAPI::GetDiscordQueryFriendRetObserver().Clear();

void INTLObserverEventsHandler::OnDiscordQueryFriendRet_Implementation(FINTLDiscordFriendResult ret)
{
    // Handle friends list
}

Text Message Callback

Unity
Unreal Engine

INTLAPI.AddDiscordMessageResultObserver(OnDiscordMessageResult);
INTLAPI.RemoveDiscordMessageResultObserve(OnDiscordMessageResult);

private void OnDiscordMessageResult(INTLDiscordMessageResult messageRet)
{
    // Handle message changes
}

UINTLSDKAPI::SetDiscordMessageUpdatedRetObserver(callback);
UINTLSDKAPI::GetDiscordMessageUpdatedRetObserver();
UINTLSDKAPI::GetDiscordMessageUpdatedRetObserver().Clear();

void INTLObserverEventsHandler::OnDiscordMessageUpdatedRet_Implementation(FINTLDiscordMessageResult ret)
{
    // Handle message changes
}

Lobby Invitation Callback

Unity
Unreal Engine

INTLAPI.AddDiscordInviteResultObserver(OnDiscordInviteResult);
INTLAPI.RemoveDiscordInviteResultObserver(OnDiscordInviteResult);

private void OnDiscordInviteResult(INTLDiscordInviteResult inviteRet)
{
    // Handle invitations
}

UINTLSDKAPI::SetDiscordAcceptInviteRetObserver(callback);
UINTLSDKAPI::GetDiscordAcceptInviteRetObserver();
UINTLSDKAPI::GetDiscordAcceptInviteRetObserver().Clear();

void INTLObserverEventsHandler::OnDiscordAcceptInviteRet_Implementation(FINTLDiscordInviteResult ret)
{
    // Handle invitations
}

Step 3: Call the API

DiscordAuthorize

Function: Link Discord account and grant friend permissions

Linking process:

First time: Bring up authorization page → enter account and password → complete linking
Next time: Direct linking using cache (if devices are changed or app is reinstalled, reauthorization is required)
Unlink: Must be operated in-game (revoking authorization in Discord alone is not sufficient)

info

Must be called after every login and before invoking other Discord interfaces. Wait for callback to return SUCCESS before calling other functions.

The Discord authorization flow is shown below:

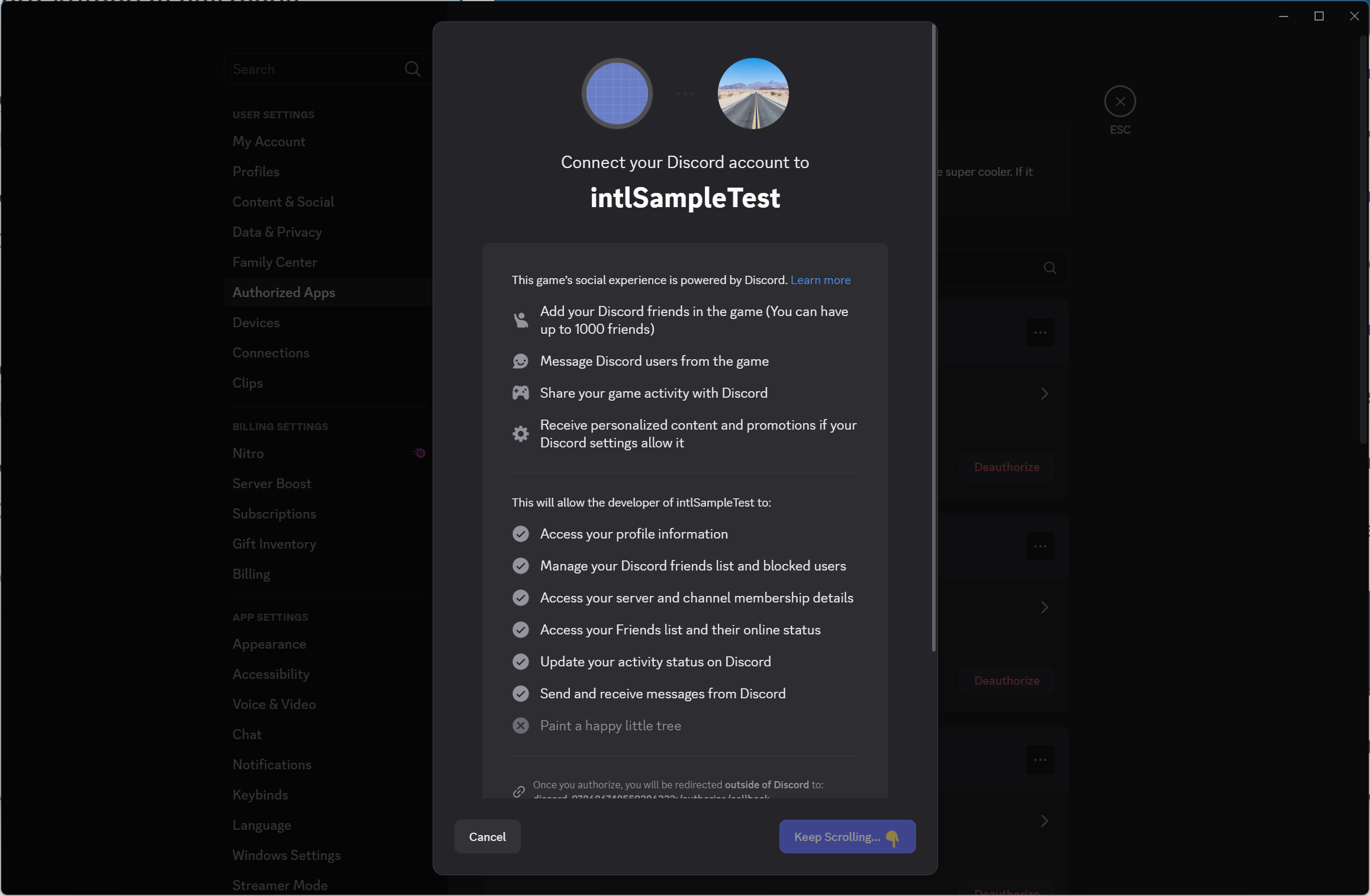

Reference style for Discord PC-side authorization page:

Image: Authorization Page

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordAuthorize();

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordAuthorize();

IsAuthorized

Function: Check if a cached token exists locally

Use case: Prevent automatic launch of the authorization page

If returns true: directly call DiscordAuthorize()
If returns false: display a button for the user to manually authorize

Unity
Unreal Engine

bool isAuthorized = INTLAPI.IsAuthorized();

bool isAuthorized = UINTLSDKAPI::IsAuthorized();

DiscordGetConnectedUser

Unity
Unreal Engine

Callback: DiscordUserResultObserver
Data: DiscordUserInfo

INTLAPI.DiscordGetConnectedUser();

Callback: DiscordUserResultObserver
Data: DiscordUserInfo

UINTLSDKAPI::DiscordGetConnectedUser();

DiscordQueryFriends

Parameters:

page (int): page number, >0
count (int): items per page, >0

Unity
Unreal Engine

Callback handling interface: DiscordFriendsResultObserver

INTLAPI.DiscordQueryFriends(1, 10);

Callback handling interface: DiscordFriendsResultObserver

UINTLSDKAPI::DiscordQueryFriends(1, 10);

DiscordAddFriendByName

Parameter: username (string)
Effect: The recipient can view the request; upon approval both parties receive friend list change callback

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordAddFriendByName("xiaoming");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordAddFriendByName("xiaoming");

DiscordAddFriendByID

Parameter: userId (string)
Effect: The recipient can view the request; upon approval both parties receive friend list change callback

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordAddFriendById("123456789");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordAddFriendById("123456789");

DiscordAcceptFriendRequest

Parameter: userId (string) - applicant's ID
Effect: Both parties receive friend list change callback

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordAcceptFriendRequest("123456789");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordAcceptFriendRequest("123456789");

DiscordRemoveFriend

Parameter: userId (string)
Effect: No approval needed; both parties receive friend list change callback

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordRemoveFriend("123456789");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordRemoveFriend("123456789");

Friend list change callback

After friend management functions succeed, both parties will receive the kMethodIDFriendDiscordOnRelationshipChanged callback.The callback does not contain userId; please call DiscordQueryFriends for details.

DiscordSendMessage

Parameters:

recipientId (string): Recipient ID
content (string): Message content

Sending rules:

Friend relationship: success
Never friends: failure
Previously friends, now deleted:
- Recipient online: callback successful but not displayed
- Recipient offline: error 50007

caution

Sending messages involves privacy; the game must disclose this.

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordSendMessage("123456789", "hello world!");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordSendMessage("123456789", "hi");

info

Registering Message Callback allows you to monitor friend message changes (create/edit/delete). Messages may contain emoji or non-text content.

DiscordSetRichPresence

Unity
Unreal Engine

Callback: DiscordBaseResultObserver
Parameter: DiscordRichPresence

INTLDiscordRichPresence richPresence = new INTLDiscordRichPresence();
richPresence.GameName = "Sample";
richPresence.State = "HappyTime";
richPresence.Details = "This is INTL Sample Game";
richPresence.PartyMaxSize = 5;
richPresence.SupportedPlatforms = 1 | 8 | 16;

INTLAPI.DiscordSetRichPresence(richPresence);

Callback: DiscordBaseResultObserver
Parameter: DiscordRichPresence

FINTLRichPresence presence;
presence.gameName = "gamename";
presence.state = "state";
presence.details = "details";
presence.partyMaxSize = 3;
presence.supportedPlatforms = 8 | 16;

UINTLSDKAPI::DiscordSetRichPresence(presence);

DiscordCreateLobby

Parameter: secret (string) - unique lobby identifier (valid for about 30 days)

Limitations:

A user can only be in one lobby at a time.
You must leave the current lobby before joining a new one.
Exiting the game does not automatically leave the lobby; an active call is required.
Lobby expires automatically several minutes after all members leave.

Recommendation: Encrypt the secret to prevent uninformed users from joining.

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordCreateLobby("testsecret");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordCreateLobby("testsecret");

DiscordLeaveLobby

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordLeaveLobby();

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordLeaveLobby();

info

Whenever any member joins or leaves the lobby, all members will receive a callback.

DiscordSendInviteToFriend

Must be performed in order:

Create Lobby
Set game status
Send Invite

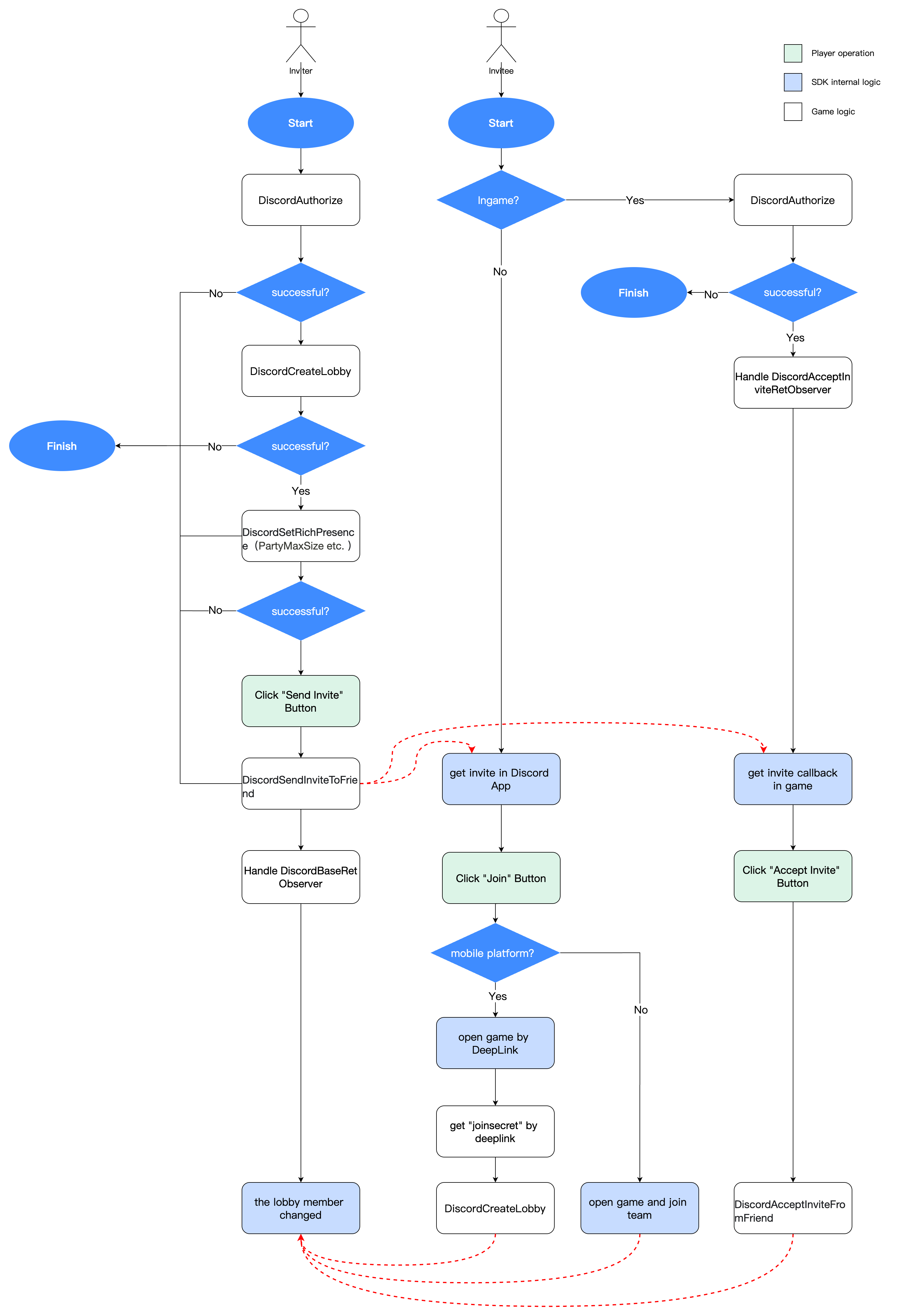

The sending invite flow is shown below:

Parameters:

userId (string): Friend ID
content (string): Invitation message

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordSendInviteToFriend("123456789", "hi, come to play with me");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordSendInviteToFriend("123456789", "hi, come to play with me");

DiscordAcceptInviteFromFriend

There are two ways to accept Discord game invitations:

Method 1: Function call
Register invitation callback, then invoke this function within the callback.

Method 2: Discord client

PC: Click Join to join automatically
Mobile: Click Join → DeepLink triggers the game → parse joinSecret → call DiscordCreateLobby

Parameter: userId (string) - sender ID

Unity
Unreal Engine

Callback handling interface: DiscordBaseResultObserver

INTLAPI.DiscordAcceptInviteFromFriend("123456789");

Callback handling interface: DiscordBaseResultObserver

UINTLSDKAPI::DiscordAcceptInviteFromFriend("123456");

Step 1: Configure Discord Application​

1.1 Create an application​

1.2 Apply for SDK access​

1.3 Configure OAuth2​

1.4 Configure Rich Presence assets​

Step 2: Register Callback​

General Function Callback​

Personal Information Callback​

Friend List Callback​

Text Message Callback​

Lobby Invitation Callback​

Step 3: Call the API​

DiscordAuthorize​

IsAuthorized​

DiscordGetConnectedUser​

DiscordQueryFriends​

DiscordAddFriendByName​

DiscordAddFriendByID​

DiscordAcceptFriendRequest​

DiscordRemoveFriend​

DiscordSendMessage​

DiscordSetRichPresence​

DiscordCreateLobby​

DiscordLeaveLobby​

DiscordSendInviteToFriend​

DiscordAcceptInviteFromFriend​

Step 1: Configure Discord Application

1.1 Create an application

1.2 Apply for SDK access

1.3 Configure OAuth2

1.4 Configure Rich Presence assets

Step 2: Register Callback

General Function Callback

Personal Information Callback

Friend List Callback

Text Message Callback

Lobby Invitation Callback

Step 3: Call the API

DiscordAuthorize

IsAuthorized

DiscordGetConnectedUser

DiscordQueryFriends

DiscordAddFriendByName

DiscordAddFriendByID

DiscordAcceptFriendRequest

DiscordRemoveFriend

DiscordSendMessage

DiscordSetRichPresence

DiscordCreateLobby

DiscordLeaveLobby

DiscordSendInviteToFriend

DiscordAcceptInviteFromFriend
