Set UI Root Node (SetUIRoot)

AndroidiOSPC

If you are using Unreal Engine, please refer to SetUIRoot in the Unreal Engine SDK.

Set the root node for all UI interfaces of LI PASS.

note

LI PASS UI design resolutions are:

Android, iOS (landscape): 1334x750

Android, iOS (portrait): 750x1334

PC, PS5, XSX: 1920x1080

caution

After setting the UI root node, do not destroy the node, or the LI PASS UI interface cannot be mounted and unexpected behaviors may occur.

Function definition

public static void SetUIRoot(GameObject root);

Parameter Explanation

Parameters	Type	Explanation
root	GameObject	UI Root Node

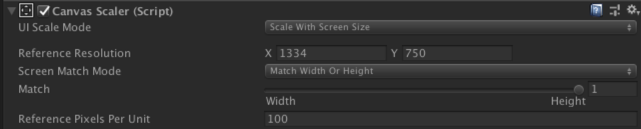

For mobile platforms (Android, iOS) using landscape games, it is recommended to set the canvas resolution to 1334x750, fixing the height and adapting the width, as shown below:

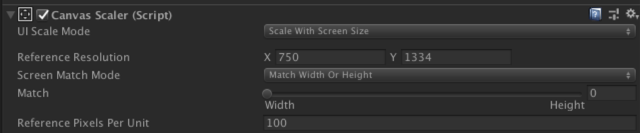

For mobile platforms (Android, iOS) using portrait games, it is recommended to set the canvas resolution to 750x1334, fixing the width and adapting the height, as shown below:

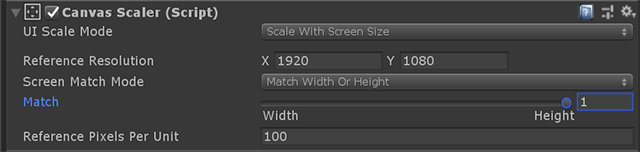

For PC or console platforms (PS5, XSX), it is recommended to set the canvas resolution to 1920x1080, fixing the height and adapting the width, as shown below:

note

In the editor, the default value of these numbers matches the current PC resolution. To avoid displaying out-of-frame issues, it is advisable that the resolution be set to a recommended value.

Code Example

LevelInfinite.SetUIRoot(uiRoot);
