AI Translation Development Integration Guide

1. Preparation before integration

1.1 Prerequisites

• Registered Player Network console and finished business project creation.
• If using SDK integration, the client Player Network SDK version must be 1.32 or above.

1.2 Choosing integration method

Integration Method	Application scenarios	Integration features
SDK Integration (Recommended)	The business has integrated the Player Network SDK, and the client can directly call SDK capabilities.	Short development cycle, suitable for real-time in-game features.
API Integration	Only integrate the AI Translation Service, or invoke centrally via the game backend.	Facilitates unified authentication, rate limiting, log auditing, and business encapsulation.

2. Management Console Operation

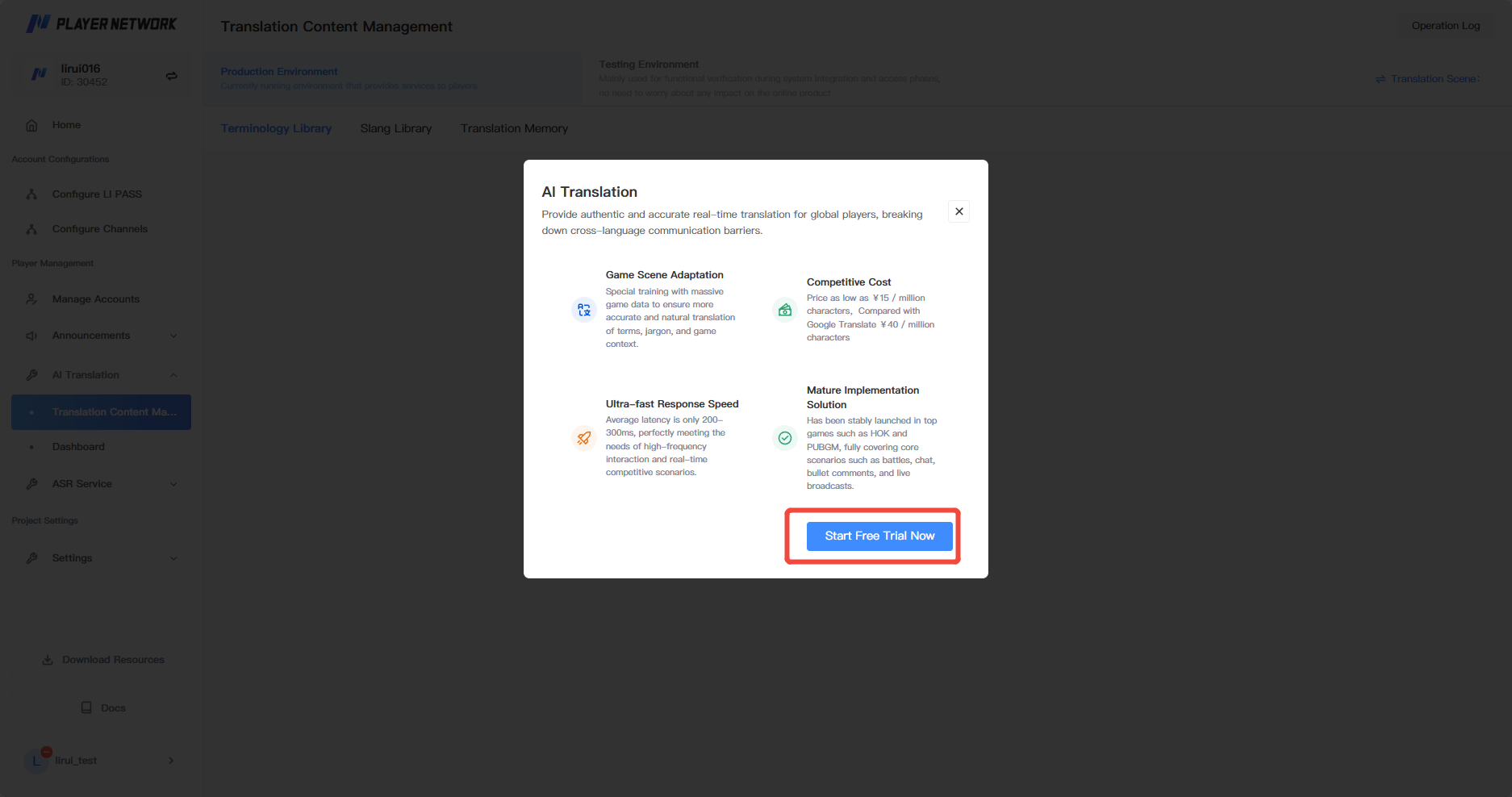

1. When you first enter the Translation Content Management, click "Try it for free now" to complete AI translation feature initialization.

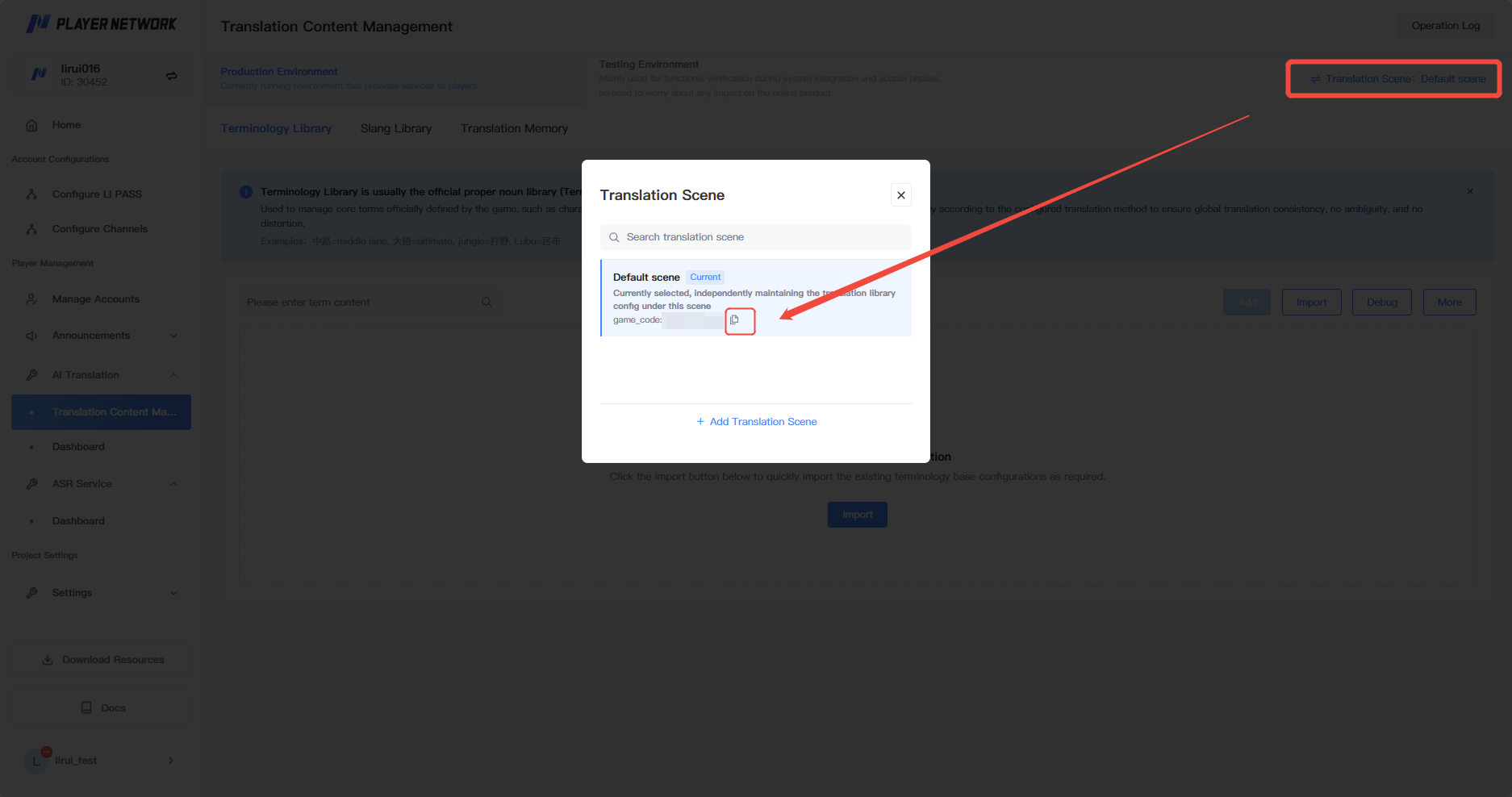

2. Click the upper right corner "Scene Switch" to obtain the gameCode corresponding to this business scenario.It is recommended to always include the gameCode when making SDK/API calls.

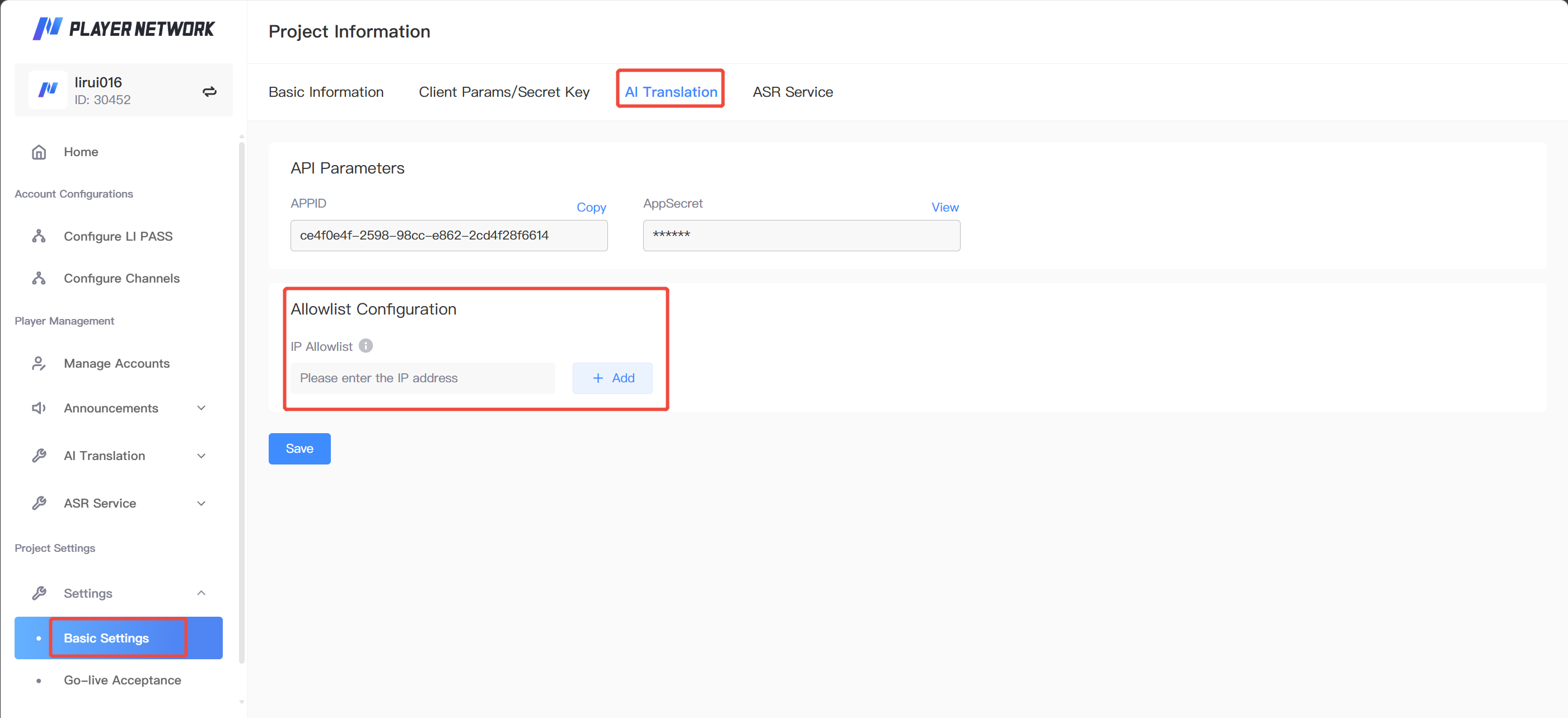

3. When accessing via API, go to "Project Information" and select "AI Translation". Fill in the game backend outbound IP in "IP Whitelist" and click save.

3. Backend API Integration

3.1 Integration Flow

1. The client or business service submits the text to be translated, along with the source language, target language, business scenario, and other relevant information to the game backend.
2. The game backend uses appId + secret to generate a JWT Token and calls the AI Translation API.
3. The AI Translation Service returns retCode, message, and result; the backend sends these to the client or writes them to the business system as required.
4. Backend logs key fields like traceId, openId, gameCode, srcLang, targetLang, retCode for troubleshooting.

3.2 API Information

When calling AI Translation API from backend, select the appropriate service domain name based on the deployment environment and concatenate with /api/v1/translator as the interface path.

Environment	Backend Domain Name	Full Call Address
test environment	http://translator.ai-test.levelinfinite.com	POST http://translator.ai-test.levelinfinite.com/api/v1/translator
Production environment	http://translator.ai.levelinfinite.com	POST http://translator.ai.levelinfinite.com/api/v1/translator

Project	Description
Interface Path	POST \<API domain>/api/v1/translator
Content-Type	application/json
Authorization	Bearer \<token>
Authentication Method	JWT, signature algorithm HS256; payload.data.account must equal the request body appId; payload.exp is the Unix expiration time in seconds.
Feature Description	Supports batch text translation, automatic source language detection, terminology/phrase locking, translation caching, and multi-strategy translation fallback.

3.3 Request Parameters

Parameter	Type	Required	Description
openId	string	Yes	User ID, identifies the specific user.
appId	string	Yes	The appId assigned by the admin must be consistent with payload.data.account in the JWT.
srcLang	string	Yes	Source language code; use auto if uncertain.
targetLang	string	Yes	Target language code such as zh, en, ja, ko, ru.
gameCode	string	No, it is recommended to pass	Business scenario code; if empty, the default gameCode of appId will be used; it is recommended to apply separately for different scenarios.
text	[]string	Yes	List of texts to translate, up to 5 items, total tokens must not exceed 4096.
context	json object	No	Translation context, includes topic, pastConversation, remark.
traceId	string	No, recommended	Unique request ID, used for request tracing.
noCache	bool	No	Cache bypass: false uses cache, true does not use cache; default is false.
extInfo	string	No	Extension field, JSON string, for future expansion.

context parameter

Parameter	Type	Required	Description
topic	string	No	Topic/scene, e.g. "game chat", "event announcement", "esports commentary".
pastConversation	string	No	Historical conversation context, improves consistency of conversation translation.
remark	string	No	Additional description, e.g. proper nouns, role names, tone requirements.

3.4 JWT Token Generation Requirements

• Use secret assigned by admin as HS256 signature key.
• payload must include data.account, value is appId.
• payload must include exp, value is Unix seconds expiration.
• Request header uses Authorization: Bearer \<token>.
• Request body appId must match data.account in token.

JWT payload 示例

{
  "exp": 1710000000,
  "data": {
    "account": "<appId>"
  }
}

3.5 Request Example

POST /api/v1/translator HTTP/1.1
Content-Type: application/json
Authorization: Bearer <token>

{
  "openId": "test-user-001",
  "appId": "<app-id>",
  "srcLang": "auto",
  "targetLang": "en",
  "gameCode": "<game-code>",
  "text": ["Cosmodrone's heavy armored soldier"],
  "context": {
    "topic": "game chat",
    "pastConversation": "",
    "remark": ""
  },
  "traceId": "translator-20260701-0001",
  "noCache": false,
  "extInfo": ""
}

3.6 Response Handling

Response Field	Type	Description	Handling Suggestion
retCode	string	Return code, "0" indicates success.	When not 0, return a business fallback prompt based on error type and record the traceId.
message	string	Return message.	For log positioning, frontend display needs to be converted to business-friendly text.
result	[]Content	The list of translations results is consistent with the request text order.	Map back to original text by index.
debugInfo	json object	Not returned by default, usually null.	Generally not passed through to the client.

Content Fields

Field	Type	Description
text	string	Original text.
output	string	Translation result.
id	string	Content ID, calculated as MD5 of appId + srcLang + targetLang + text.

成功响应示例

{
  "retCode": "0",
  "message": "Success",
  "result": [
    {
      "text": "Cosmodrone's heavy armored soldier",
      "output": "Cosmodrone's heavy armored soldier",
      "id": "f009a3089f293939c0f01f36c0f047e2"
    }
  ],
  "debugInfo": null
}

3.7 Error Code and Backend Handling Suggestions

retCode	Type	Common causes	Handling Suggestion
0	Success	Call succeeded.	Return result.output.
1	service codec Unmarshal	Parameter type error, e.g. string passed as int.	Check request JSON serialization and field types.
1001	ParamsError	appId does not exist, unsupported language, text is empty or exceeds batch limit, traceId too long.	Validate parameters; log errors and traceId.
1002	ServiceInternalError	Internal Service Error.	Retry briefly; if multiple failures occur, contact PNT support and provide the traceId.
1003	PermissionError	Token missing, expired, signature error, or token appId is inconsistent with the request body.	Regenerate token; check appId/secret.
1007	rate limit reached	QPM or daily PV reached the hard rate limit.	Frontend prompts retry later; backend circuit breaks or degrades; contact Admin to adjust quota.

Phrase lock instructions

Original text can be marked as not to be translated using the <span class='notranslate'>{word}</span> tag.The caller needs to handle any <span class='notranslate'></span> tags that may be returned in the translation to avoid displaying the tags directly to players.

4. Client SDK Integration

Version requirement

SDK integration for AI translation requires Player Network SDK version 1.32 or above.Relative capabilities are not supported in version below 1.32 and require SDK upgrades.

4.1 Integration Flow

1. Ensure the client has completed Player Network SDK initialization and user login, and can obtain login state information such as openId / token.
2. Obtain gameCode from console or backend configuration; if distributed by backend, synchronize configuration at client startup.
3. Construct INTLTranslatorReq request struct, fill source language, target language, texts to translate, context, and traceId.
4. Call translation interface encapsulated by SDK to submit request.Actual method name is subject to the SDK version documentation.
5. Read translatorResp from INTLTranslatorResult callback and parse translator_rsp.result[].output.
6. Fallback display and report traceId for non-zero retCode or SDK base error codes.

4.2 INTLTranslatorReq Field Description

Field	Type	Required	Description	Filling Suggestion
SrcLang	string	Yes	Original language, default auto.	If player input language is unclear, pass auto.
TargetLang	string	Yes	Target language.	Recommended: use player current UI language or recipient language.
TranslateTexts	string	Yes	Translation content, format is JSON array string, up to 5 groups.	Example: ["hello", "world"]; note not an array object.
Topic	string	No	Translation text background information.	Can fill game_chat, notice, support_ticket, etc.
PastConversation	string	No	Historical conversation content.	Used for continuous translation of the context of the conversation.
Remark	string	No	Other supplementary information.	Can fill in the role name, equipment name, terminology description.
NoCache	bool	No	Whether to disable cache, default false.	For real-time chat generally use false; for special dynamic text can set true.
GameCode	string	No, it is recommended to pass	gameCode assigned by AI Translation Service.	Use value retrieved via admin console scene switching.
ExtInfo	string	No	Extension JSON field, note: it is a JSON string.	For example {"scene":"chat"}.
TraceId	string	No, it is recommended to pass	Unique request ID, used for request-response association.	Recommended to generate UUID by client or backend.

客户端请求结构示例（伪代码，方法名以 SDK 实际版本为准）

INTLTranslatorReq req;
req.SrcLang = "auto";
req.TargetLang = "en";
req.TranslateTexts = "[\"Cosmodrone's heavy armored soldier\"]";
req.Topic = "game_chat";
req.PastConversation = "";
req.Remark = "";
req.NoCache = false;
req.GameCode = "<game-code>";
req.ExtInfo = "";
req.TraceId = "client-trace-001";

// SDK.Translate(req, OnTranslatorResult);

4.3 INTLTranslatorResult Callback Handling

• Translation results are returned in translatorResp; the game side needs to parse them itself.
• First determine SDK base result ret / ret_code, then parse translator_rsp.retCode.
• When translator_rsp.retCode is "0", get translation from translator_rsp.result[].output.
• translator_rsp.result and text order in request TranslateTexts correspond one-to-one.

translatorResp 核心结构示例

{
  "ret": 0,
  "msg": "success",
  "translator_rsp": {
    "retCode": "0",
    "message": "Success",
    "traceId": "trace",
    "result": [
      {
        "text": "Original Text",
        "output": "Translated Text",
        "id": "c5b2802a287f58c9ce250f8c77fc6029"
      }
    ]
  },
  "asr_rsp": ""
}

5. Joint debugging & acceptance

5.1 Acceptance Checklist

Checklist Items	Acceptance Criteria	Troubleshooting Fields
Feature Initialization	Admin console has completed AI translation initialization.	Project ID, appId
gameCode	gameCode passed through SDK/API is consistent with admin console scenario.	gameCode, traceId
Whitelist	Backend outbound IP added to AI translation API whitelist.	Outbound IP, request time
JWT Authentication	Authorization: Bearer \<token> passes authentication.	appId, exp, traceId
Parameter Validation	Fields such as openId, srcLang, targetLang, text meet requirements.	Request body, retCode, message
Batch Limit	Up to 5 texts per request, total tokens not exceeding 4096.	text length, retCode
Response Mapping	result order matches request text order; client displays output.	id, text, output
Error Fallback	Errors like 1001/1003/1007 are correctly prompted and reported.	retCode, message, traceId

5.2 Go-live Confirmation

• Production domain, whitelist, and rate limit configuration confirmed.
• Backend token expiration is reasonable and supports auto-refresh.
• Do not log secret, full token, or user sensitive text.
• Client provides fallback content for translation failures.
• Critical error codes and traceId are integrated with monitoring and reporting.

6. Common Issues & Troubleshooting Suggestions

Question	Possible Cause	Solution
AI Translation returns PermissionError / 1003	Token missing, expired, signature error, or request body appId does not match token account.	Regenerate token; check secret; ensure Authorization: Bearer \<token> format.
AI Translation returns ParamsError / 1001	appId does not exist, unsupported language, text is empty or exceeds limit.	Check appId, srcLang, targetLang, text quantity and length; keep traceId for troubleshooting.
SDK callback prompts Invalid param, openid or token empty	The client is not logged in or did not obtain openId/token from authResult.	Log in again; ensure SDK login state is valid before invoking.
SDK callback invalid config / ret 91002	Backend configuration missing.	Contact Player Network Assistant to supplement configuration.
Rate limit error 1007	QPM or daily PV reached hard rate limit.	Business side degrades or prompts retry; contact Admin to adjust rate limit configuration.

Common Client Exceptions

Callback returns Invalid param, openid or token empty is usually because openId or token was not passed.Please log in again and obtain the correct openId/token from authResult login state before invoking the interface.

Callback returns "msg":"invalid config", "ret":91002 is usually due to missing backend configuration; contact Player Network Assistant for configuration.

Appendix: Backend Integration Pseudocode

Python 伪代码：生成 JWT 并调用 AI 翻译

import time
import uuid

import jwt
import requests

app_id = "<app-id>"
secret = "<secret>"
api_url = "https://<api-domain>/api/v1/translator"

token = jwt.encode(
    {
        "data": {"account": app_id},
        "exp": int(time.time()) + 300,
    },
    secret,
    algorithm="HS256",
)

body = {
    "openId": "test-user-001",
    "appId": app_id,
    "srcLang": "auto",
    "targetLang": "en",
    "gameCode": "<game-code>",
    "text": ["Cosmodrone's heavy armored soldier"],
    "traceId": str(uuid.uuid4()),
    "noCache": False,
    "extInfo": "",
}

resp = requests.post(
    api_url,
    json=body,
    headers={
        "Authorization": f"Bearer {token}",
        "Content-Type": "application/json",
    },
)
print(resp.json())
