ASR Service Development Integration Guide

1. Preparation Before Integration

1.1 Prerequisites

• Registration with Player Network Console is completed, and business project creation is done.
• If SDK integration is used, the client Player Network SDK version must be 1.32 or above.

1.2 Choose Integration Method

Integration Method	Applicable Scenarios	Integration Features	Security Notes
SDK Integration (Recommended)	Business has already integrated with Player Network SDK, and the client can directly call SDK capabilities.	Short integration path, suitable for real-time in-game features.	The client uses only the parameters required by the SDK and must not store secret.
API Integration	Only integrate the ASR Service, or invoke centrally via the game backend.	Facilitates unified authentication, rate limiting, log audit, and business encapsulation.	secret is only stored in a trusted backend or key management system.

1.3 Audio and Language Preparation

Preparation Item	Description	Recommendation
Language code	ASR recognition language types, such as zh, en.	Set according to the player's current language or business scenario; if uncertain, it should be clearly configured by the backend/management console.
Audio format	Supports WAV and GVoice Opus.audioFormat: 1-WAV, 2-GVoice Opus.	The client recording format must be consistent with audioFormat.
Audio path/file	SDK side uses local VoicePath; API file upload uses the data Part.	Verify file exists, is readable, and that size and duration are reasonable before upload.
Timestamp	application/json protocol requires timeStamp.start/end.	For issue location in live broadcast or segment recognition scenarios.

2. Management Console Operations

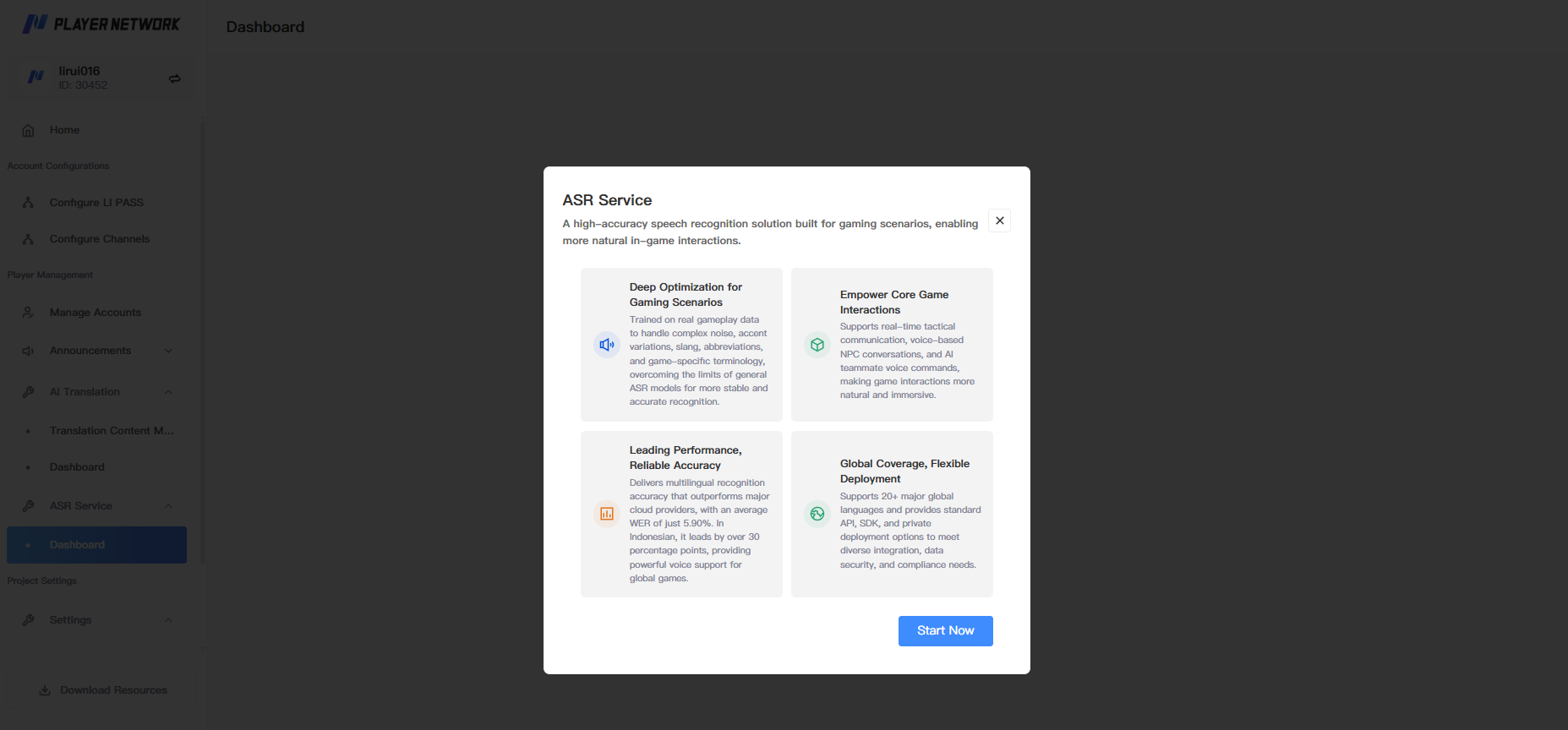

1. When you first enter the ASR Service, click "Try it for free now" to complete ASR Service feature initialization.

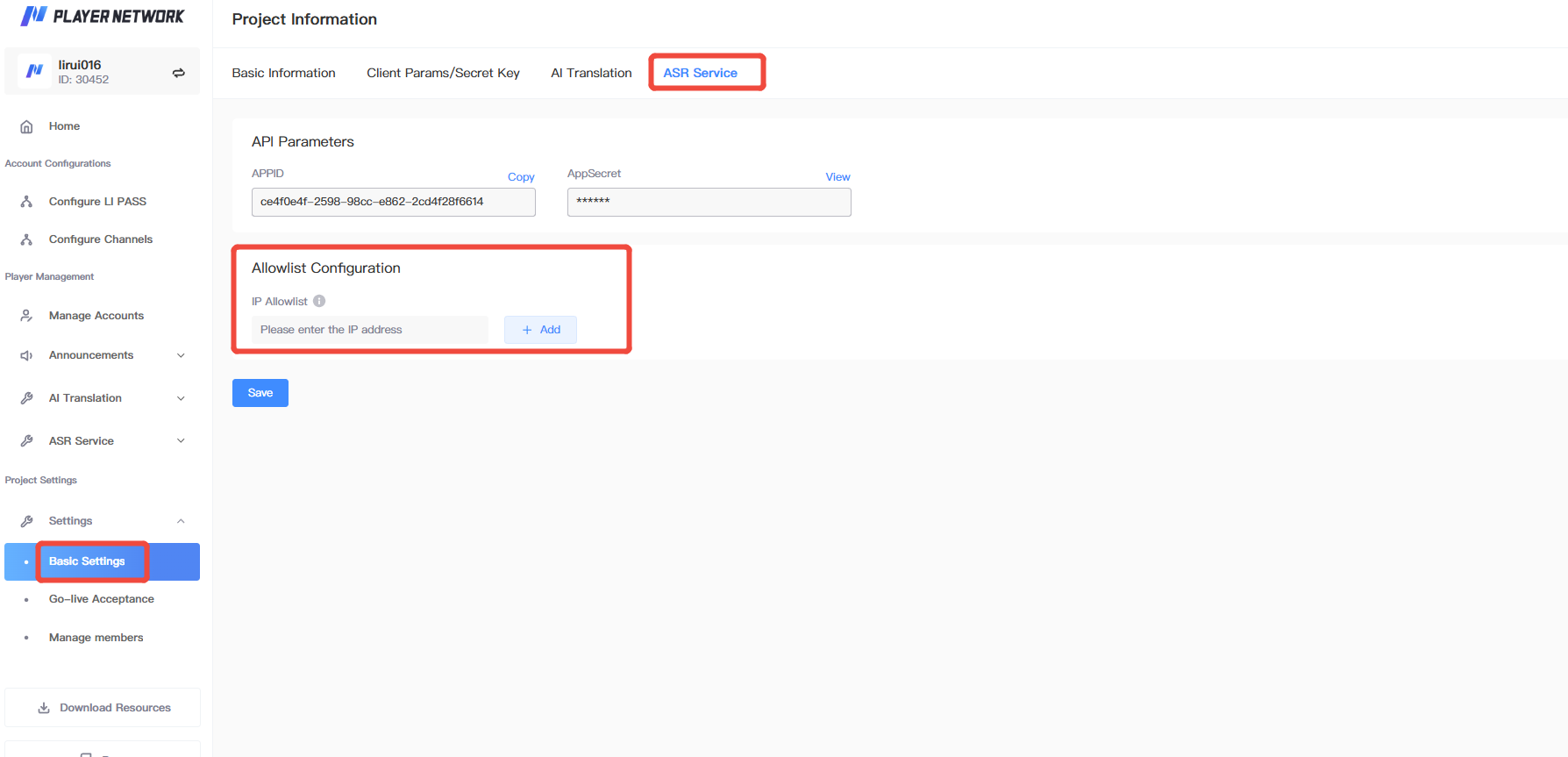

2. For API integration, go to the "Project Info" to configure the ASR Service API whitelist and fill in your game backend's egress IP into the whitelist and save.

3. Backend API Integration

3.1 Protocol Selection

Protocol	Content-Type	Audio Input Method	Applicable Scenario	Notes
Protocol 1	application/json	The audioFile field passes base64 encoded PCM audio data.	Esports live streaming scenario.	Must pass appId, audioFile, gameCode, srcLang, timeStamp, and traceId.
Protocol 2	multipart/form-data	meta Part passes JSON configuration; data Part passes audio binary file.	In-game voice recognition from Player, client uploading WAV/GVoice Opus file.	Content-Type of both meta and data Parts will be checked and must be filled in as required.

3.2 API Information

When calling the ASR Service API from the backend, select the corresponding full address according to the current deployment environment. The API path is /api/v2/speechai/asr.

Environment	Full API Address	Description
Tencent Cloud Test environment	https://asr-test.intlgame.com/api/v2/speechai/asr	For use in Tencent Cloud test environment.
Jakarta Test environment	https://ai-test.intlgame.com/api/v2/speechai/asr	For use in Jakarta test environment.
Jakarta Production environment	https://speechai.intlgame.com/api/v2/speechai/asr	For use in production environment.

Project	Description
API Path	POST \<API domain>/api/v2/speechai/asr
Content-Type	multipart/form-data or application/json
Authorization	Bearer \<token>
Authentication Method	JWT, signature algorithm HS256; payload.data.account must be consistent with appId.
Feature Description	Speech recognition interface supports both base64 encoded PCM audio data and file upload audio.

3.3 application/json Request Parameters

Parameter	Type	Mandatory	Description
appId	string	Yes	appId assigned by the Admin.
audioFile	string	Yes	base64 encoded PCM audio data.
gameCode	string	Yes	Business code identifying the business scenario; an incorrect value will result in an error.
srcLang	string	Yes	Target speech recognition language code, such as zh, en.
timeStamp	json string	Yes	Timestamp information, including start, end.
traceId	string	Yes	Unique request ID, used to track requests.
gameLang	string	No	Player game language, can be omitted if there is no Player.
systemLang	string	No	Player's system language, can be omitted if there is no Player.
openId	string	No	User ID, currently not in use.
sessionId	string	No	Session ID, currently not in use.

timeStamp Field

Field	Type	Mandatory	Description
start	float64	Yes	Audio segment start time.
end	float64	Yes	Audio segment end time.

application/json Request Example

POST /api/v2/speechai/asr HTTP/1.1
Content-Type: application/json
Authorization: Bearer <token>

{
  "appId": "<app-id>",
  "audioFile": "<base64 encoded PCM audio data>",
  "traceId": "asr-json-001",
  "srcLang": "zh",
  "gameCode": "<game-code>",
  "timeStamp": {
    "start": 1672531200,
    "end": 1672531260
  }
}

3.4 multipart/form-data Request Parameters

Part Name	Content-Type	Required	Description
meta	application/json	Yes	JSON configuration, describing basic information such as appId, audioFormat, gameCode, language, and traceId.
data	application/octet-stream	Yes	Audio binary file, currently supports WAV and GVoice Opus.

meta Parameters

Parameter	Type	Required	Description
appId	string	Yes	appId assigned by the admin.
audioFormat	int	Yes	Audio format: 1-WAV, 2-GVoice Opus.
gameCode	string	Yes	Business code identifying the business scenario.
traceId	string	Yes	Unique request ID, used to track requests.
srcLang	string	No	Target speech recognition language, such as zh, en; usually optional for in-game scenarios, more for e-sports live streaming.
gameLang	string	No	Player game language.
systemLang	string	No	Player system language.
openId	string	No	User ID, currently not in use.
sessionId	string	No	Session ID, currently not in use.
timeStamp	json string	No	Timestamp information, including start, end.

multipart/form-data Request Example

POST /api/v2/speechai/asr HTTP/1.1
Content-Type: multipart/form-data; boundary=----boundary
Authorization: Bearer <token>

------boundary
Content-Disposition: form-data; name="meta"
Content-Type: application/json

{
  "appId": "<app-id>",
  "audioFormat": 1,
  "traceId": "asr-file-001",
  "srcLang": "en",
  "gameLang": "en",
  "systemLang": "en",
  "gameCode": "<game-code>"
}
------boundary
Content-Disposition: form-data; name="data"; filename="voice.wav"
Content-Type: application/octet-stream

(binary)
------boundary--

3.5 Response Handling

Response Field	Type	Description	Handling Recommendation
retCode	int	Return code, 0 means success.	If not 0, enter error handling and log reporting.
message	string	Return message.	For log records, not recommended for direct display to players.
traceId	string	Request tracking ID.	Provide to PNT support for troubleshooting.
result	object	ASR recognition result, returned only when successful.	Read result.text as the full recognized transcript.
result.start	float64	Audio segment start time.	Used for streaming or segment recognition scenarios.
result.end	float64	Audio segment end time.	Used for streaming or segment recognition scenarios.
result.text	string	Full recognized text content.	Display or enter follow-up translation/review process.
result.words	[]Word	Detailed word-level information list.	Used for subtitle timeline, confidence, or speaker display; ignore if empty.

Word parameter field	Type	Description
text	string	Text content of the individual word.
start	float64	The start time of the word in the audio (seconds).
end	float64	The end time of the word in the audio (seconds).
score	float64	Confidence score of word recognition.
speaker	string	Speaker identifier, used to distinguish different speakers.

Success Response Example

{
  "retCode": 0,
  "message": "success",
  "traceId": "29d7b34e-3521-4f16-9c5a-12b36c466382",
  "result": {
    "start": 1770780974,
    "end": 1770780980.017,
    "text": "Hello World!",
    "words": null
  }
}

3.6 Error Handling Recommendations

Error Type	Possible Cause	Handling Suggestion
Authentication failed	Token expired, signature error, or appId does not match token account.	Regenerate token; check appId/secret; verify Authorization header format.
Parameter error	Missing appId, gameCode, traceId, audioFile; unsupported audioFormat; incorrect Part Content-Type for meta/data.	Verify required fields per protocol; explicitly set Part Content-Type for multipart requests.
Audio format error	Audio is not WAV/GVoice Opus or failed base64 decoding.	Verify format before client upload; server should log file type and size.
Abnormal audio duration	Audio is empty, too short, too long, or duration does not meet service requirements.	Client limits recording duration; backend adds pre-validation.
Recognition is empty or noisy	Audio has excessive noise, no human voice, or triggers noise filtering.	Prompt player to re-record on frontend; denoise or limit environmental noise as needed.
Internal Service Error	ASR service or dependency exception.	Retry briefly; if still fails, contact PNT support and provide traceId.

4. Client SDK Integration

Version requirement

SDK integration for ASR Service requires Player Network SDK version 1.32 or above.Versions below 1.32 do not support the related capability; please upgrade the SDK first.

4.1 Invocation Process

1. Ensure the client has integrated Player Network SDK and completed login state initialization.
2. Record or obtain a local audio file, ensuring the format is WAV or GVoice Opus.
3. Construct the INTLTranslatorVoiceV2Req request struct, filling fields such as VoicePath, AudioFormat, GameCode, and TraceId.
4. Call the SDK's encapsulated audio translation/ASR interface to submit the request.Use the actual method name according to your SDK version documentation.
5. Read asrRsp from the INTLTranslatorResult callback, and give priority to parsing result.text according to the ASR V2 structure.
6. Display the recognized text or proceed with text translation, sensitive word review, chat sending, and other business processes.

4.2 Description of INTLTranslatorVoiceV2Req Fields

Field	Type	Required	Description	Filling Suggestion
VoicePath	String	Yes	Audio file path.	Ensure the file exists and the client has read permissions.
AudioFormat	Integer	Yes	Currently supports WAV and GVoice Opus: 1-WAV, 2-GVoice Opus.	Fill in according to actual file format; do not mix them.
GameCode	String	Yes	gameCode assigned to the game by AI Translation Service.	Use the value obtained in the admin scenario switch.
SessionId	String	No	Session ID for streaming ASR.	Not required for non-streaming/regular file recognition.
GameLanguage	String	No	Game language setting.	Can be set to the player's current game language.
ExtInfo	String	No	Additional information.	You can enter a JSON string.
TraceId	String	Yes	Unique request ID for tracking purposes.	It is recommended to generate a unique UUID for each request.

Client ASR V2 Request Sample (Pseudocode; actual SDK method names may vary)

INTLTranslatorVoiceV2Req req;
req.VoicePath = "<local-voice-file.wav>";
req.AudioFormat = 1; // 1-WAV, 2-GVoice Opus
req.GameCode = "<game-code>";
req.SessionId = "";
req.GameLanguage = "zh";
req.ExtInfo = "";
req.TraceId = "client-asr-trace-001";

// SDK.AudioTranslateV2(req, OnTranslatorResult);

4.3 asrRsp Callback Handling

• ASR results are returned in asrRsp; the game side needs to parse them itself.
• It is recommended to read asr_rsp.result.text as the recognition result in ASR V2.
• start, end, and words are mainly used for streaming or subtitle scenarios; can be ignored for normal in-game speech-to-text.
• Only display the recognized text when callback retCode is 0; if not 0, prompt to re-record or try again later.

asrRsp V2 Core structure example

{
  "ret": 0,
  "msg": "success",
  "translator_rsp": "",
  "asr_rsp": {
    "retCode": 0,
    "message": "success",
    "traceId": "traceId",
    "result": {
      "text": "Hello World!",
      "start": 0,
      "end": 0,
      "words": null
    }
  }
}

5. Integration and Acceptance Testing

5.1 Acceptance Checklist

Checklist Item	Pass Criteria	Problem Location Field
Feature Initialization	Admin console has completed ASR Service initialization.	Project ID, appId
gameCode	The provided gameCode is consistent with the admin scenario.	gameCode, traceId
Protocol Selection	Use application/json for base64. Use multipart/form-data for file upload.	Content-Type, request body
Audio Format	WAV/GVoice Opus consistent with audioFormat.	audioFormat, file extension, audio header
multipart part	meta is application/json; data is application/octet-stream.	Part Content-Type
Recognition result	If successful, result.text or asr_rsp.result.text contains content.	retCode, message, traceId
Empty audio/noise	If there is no human voice or the scenario is noisy, prompt to re-record.	retCode, audio duration, traceId
Exception fallback	Authentication, parameters, formats, and service exceptions all have business prompts.	retCode, message, traceId

5.2 Pre-launch confirmation

• Production domain, whitelist, and rate limit configuration confirmed.
• Backend token expiration time is reasonable and supports automatic refresh.
• Do not print secret, full token, or complete audio contents in logs.
• Client supports fallback processes such as recording failure, recognition failure, and re-record.
• Key error codes and traceId are integrated into monitoring alerts or issue reporting.

Client experience suggestions

Prompt the player to stay in a quiet environment before recording; display the duration during recording; show loading during upload and recognition; provide a "Record Again" option upon failure.

It is recommended to display the ASR recognized text to the player for confirmation before sending, to avoid sending misrecognized content directly.

6. Common Issues & Troubleshooting Recommendations

Question	Possible Causes	Solution
ASR reports parameter error after uploading file	Incorrect multipart meta/data part name or Content-Type.	Confirm meta=application/json, data=application/octet-stream.
ASR recognition result is empty	No valid voice detected in the audio, excessive noise, or abnormal recording permissions.	The client should first locally verify the size/duration of the recording file; prompt the player to re-record.
ASR audio format error	Uploaded format does not match audioFormat, or is not WAV/GVoice Opus.	Use unified recording coding; send audioFormat=1 for WAV, audioFormat=2 for GVoice Opus.
Authentication failed	Token missing, expired, signature error, or request body appId does not match token account.	Regenerate token; check secret; confirm Authorization: Bearer \<token> format.
SDK callback invalid config / ret 91002	Backend configuration missing.	Please contact the Player Network Assistant to supplement the configuration.

Appendix: Backend integration pseudocode

Python Pseudocode: multipart/form-data calls ASR

import json
import time
import uuid

import jwt
import requests

app_id = "<app-id>"
secret = "<secret>"
api_url = "https://<api-domain>/api/v2/speechai/asr"

token = jwt.encode(
    {
        "data": {"account": app_id},
        "exp": int(time.time()) + 300,
    },
    secret,
    algorithm="HS256",
)

meta = {
    "appId": app_id,
    "audioFormat": 1,
    "traceId": str(uuid.uuid4()),
    "srcLang": "zh",
    "gameLang": "zh",
    "systemLang": "zh",
    "gameCode": "<game-code>",
}

with open("voice.wav", "rb") as f:
    files = {
        "meta": (None, json.dumps(meta), "application/json"),
        "data": ("voice.wav", f, "application/octet-stream"),
    }
    resp = requests.post(
        api_url,
        files=files,
        headers={"Authorization": f"Bearer {token}"},
    )

print(resp.json())
